Motorola PR860™

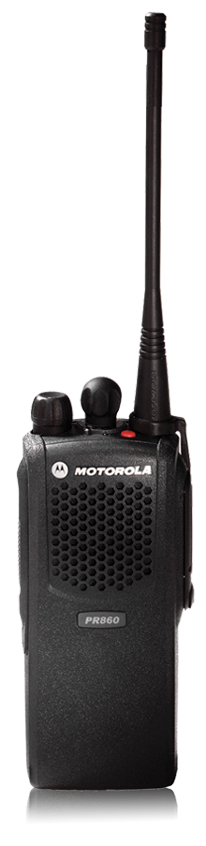

Motorola PR860

Hard-working with Heavyweight Features

The Motorola PR860 portable two-way radio combines durability and performance with advanced features and a rugged design. This affordable radio also offers an advanced level of sound clarity and dynamics for a radio at this price. The ergonomic design maximizes user comfort, with bigger knobs and controls that can be easily operated - even while wearing heavy gloves

Motorola PR860 Features

  • 16 Channels
  • 12.5/25 kHz Switchable Channel Spacing (VHF/UHF) 20/30 kHz Switchable Channel Spacing (LowBand)
  • 3 Programmable Side Buttons
  • Single Priority Scan Battery Status / Emergency Siren Top Button
  • X-Pand™ Technology
  • Time-Out-Timer
  • Busy Channel Lockout
  • Internal VOX
  • Adjustable Power Levels
  • Option Board Expandability

Signaling Features

  • MDC1200 PTT-ID (Encode)
  • MDC1200 Radio Check (Decode)
  • MDC1200 Emergency Signaling (Encode)
  • MDC1200 Selective Call (Decode)
  • MDC1200 Select Radio Inhibit (Decode)
  • MDC1200 Call Alert (Decode)
  • Quik-Call II (Decode)
  • Escalert Call Features

Programmable Buttons

  • High / Low Power
  • Channel Scan
  • Squelch Levels
  • Repeater / Talkaround
  • Monitor
  • Emergency Siren
  • Battery Status
  • Volume Set

Motorola PR860 Applications

Ideal for: Community Safety Groups, Construction, Fire, Manufacturing, Police, Public Utilities

Motorola PR860 Models

Low Band

  • AAH45BEC9AA3_N
    PR860 16 Channel, 1-6W, 29.7-42 MHz Low Band
  • AAH45CEC9AA3_N
    PR860 16 Channel, 1-6W, 35-50 MHz Low Band


  • AAH45KDC9AA3_N
    PR860 16 Channel, 1-5W, 136-174 MHz VHF


  • AAH45RDC9AA3_N
    PR860 16 Channel, 1-4W, 403-470 MHz VHF
  • AAH45SDC9AA3_N
    PR860 16 Channel, 1-4W, 450-512 MHz VHF

All Motorola PR860 models include:

  • Standard Battery
    • UHF/VHF - Li-ion, IMPRES™ 2000 mAh, 7.5V Battery
    • Lowband - NiMH, 1800 mAh, 7.5V Battery
  • Standard Charger (IMPRES™ Single Unit Charger)
  • Standard Antenna (LB / VHF / UHF)
  • 2.5" Belt Clip
  • Two Year Warranty

Motorola PR860 Accessories

Motorola Original and Motorola Certified Accessories expand the capabilities of your radio and create a truly customized communication solution for your organization. Motorola accessories are system-tested with Motorola radios to ensure optimum performance.
