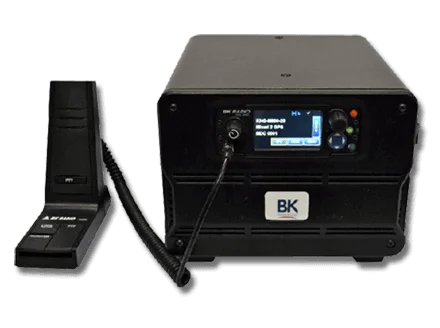

KNG Base Station

    BK Technologies KNG Base Station
BK Technologies

KNG Base Station

The KNG Series Base Station offers exceptional features in a standard size package for both mid and high power applications. Offered in four frequency bands and two power options, 50 or 100 watt, the KNG Series Base Station is smart and easy to customize to fit your everyday needs. The KNG Base Station is also available with the option to connect two remote head units.


Request a Quote

Performance

Frequency band:
VHF, UHF, 700/800 MHz

Frequency range:
VHF: 136-174 MHz
UHF: 380-470, 440-520 MHz
700/800: 763-870 MHz

Power Output:
VHF: 50 W
UHF: 50 W
700/800: 30/35 W

Number of Channels/Groups/Zones:
5000 Channels

Advanced Features

  • 5000 Channels, Dynamic Zoning
  • USB Or Mobile Programmability
  • Mixed-Mode Operation
  • Talk Around
  • Channel/Priority/Group Scan
  • Custom Menu System
  • MIL-STD 810 C/D/E/F/G
  • Text Messaging
  • Alpha-Numeric Touch Screen Display
  • Small Package High And Mid Power
  • Birdie Free
  • 512 Programmable Quick Call ID’s
  • Problem Prevention Features
  • DVSI AMBE+2 Version 1.60 Vocoder
  • Emergency Signaling

Brochures

Antenna [+]

No Image Available

KAA0834

GPS Antenna (Magnetic Mount) w/17 ft. cable & MMXC Male Connector
No Image Available

KAA0835

Fixed Vehicular Antenna mount
Single combined mount for GPS & NMO, dual coax w/17 ft. cables and w/MMXC male plug connector (GPS) & N-Type male plug connector (Radio)
No Image Available

MAGMT-NTYPE

Magnetic Mount Base w/17 ft. Cable & Type-N male connector
No Image Available

MAGMT-UHF

Mount, Mag, UHFM, 17' Cable
No Image Available

MWU4002S

UHF Mobile Antenna, 380-470 MHz, for NMO mount
No Image Available

MWV1360S

VHF Mobile Antenna, 136-174 MHz, for NMO mount
No Image Available

MWV800

Mobile Antenna, 763-870 MHZ
No Image Available

MWV800NGP

Antenna Mobile, 806-866MHz, MUF8003NGP (S) (No Ground Plane Required
No Image Available

MWV800STB

Antenna, OMNI, NMO, 698-960 MHz /1700-2700 MHz, Stubby 3.5 dbi, 100 W
No Image Available

NMO-NTYPE

NMO Antenna Vehicular Mount w/17 ft. cable & Type-N Male Connector
No Image Available

NMO-NTYPE-L

Mount, Antenna, Perm Hole, NMOKHFUD

Installation & Mounting

No Image Available

KAA0622

Cable Assembly, Interface, Motorcycle, for Setcom motorcycle product, KNG-M Mobiles
No Image Available

KAA0623

Radio Interface Cable for connecting a KNG-Mxxx to the David Clark U3800 headset system.
No Image Available

KAA0628

Cradle, Desktop, HCH/RCH Interface, KNG-GM/B
Desk top docking station for a KAA0670 HCH for remote interfacing to a KNG-M/B. Use with the KAA0659.
No Image Available

KAA0630

KNG-M Dash Mount Install Kit, Bracket, Hardware & Power Cord
The KAA0630 is included with each KNG-Mxxx/MxxxR
No Image Available

KAA0634

30” KNG-M Mobile Remote Mount Interface Cable Assembly (suggested for use as a KNG-M Test Bench cable assembly)
No Image Available

KAA0635

8 ft. KNG-M Mobile Remote Mount interface Cable Assembly
No Image Available

KAA0636

17 ft. KNG-M Mobile Remote Mount Interface Cable Assembly
No Image Available

KAA0637

25 ft. KNG-M Mobile Remote Mount Interface Cable Assembly
No Image Available

KAA0638

KNG-M Remote Mount Install Kit, Bracket, Hardware & Power Cord (The KAA0638 install kit is included with each KAA0660)
No Image Available

KAA0639

KNG-MxxxR Trunk Mount Installation Kit
No Image Available

KAA0639C

KNG-MxxxR In-Cab Mount Installation Kit
No Image Available

KAA0642

Kit, Interface KNG-M/RCH for KAA0628
No Image Available

KAA0656

Cable, RCH Extension, 300ft,
No Image Available

KAA0656-100

Cable, RCH Extension, 100ft.,
No Image Available

KAA0656-500

Cable, RCH Extension, 500Ft
No Image Available

KAA0659

Splitter, Interface, HCH/RCH, KNG-M/B
Interface up to 4 remote HCH/RCH remote control head connections to a KNG-M/B.
Use with the KAA0628. Up to 4 cradle interfaces can be made to one KNG-M/B thru a non- Ethernet/TCP CAT5 cable network.
No Image Available

KAAMSAT

MSAT to KNG-M Interface Cable

Microphones and Audio Accessories [+]

No Image Available

KAA0258

Microphone, Desktop
No Image Available

KAA0261

External Speaker 20W, 4 Ohm, with Mounting Bracket (included w/each KNG-Mxxx and KNG-MxxxR)
No Image Available

KAA0276

Standard Handheld Microphone, KNG-M/B
No Image Available

KAA0276S

Standard Handheld Microphone KNG-M with Straight connector
No Image Available

KAA0290

Heavy Duty Handheld Programming Microphone (Smart Mic), KNG-M/B
No Image Available

KAA0290S

Handheld Programming Microphone with straight connector
No Image Available

KAA0647

Aux / Speaker Cable Assembly (included with each KNG-M)
No Image Available

KAA0670

Touch Screen Handheld Control Head (HCH)
Includes Internal Speaker, Emergency button, soft keys, navigational keys, Volume/Channel up/down, Home button, and Microphone.
No Image Available

KAA07110

KNG-M Series Telephone Handset
Includes: Telephone Handset, Handset Cradle, Mounting Plate, DB25 Mic Interface Cable Assembly and all necessary mounting hardware. Interfaces directly to KNG-M150 or KAA0660.
Can also be used with KNG-M150R & KAA0660 combination.
  • KNG-B150: Base, Station, Digital VHF 136-174MHz, 5000 Channels, 50 Watts
  • KNG-B400: Base, Station, Digital UHF 380-470MHz, 5000 Channels, 50 Watts
  • KNG-B500: Base, Station, Digital UHF 440-520-MHz, 5000 Channels, 50 Watts
  • KNG-B800: Base, Station, Digital 763-870 MHz, 5000 Channels, 30/35 Watts
