Motorola BPR40

  • Motorola Solutions BPR40
  • Motorola Solutions bpr40
Motorola

BPR40

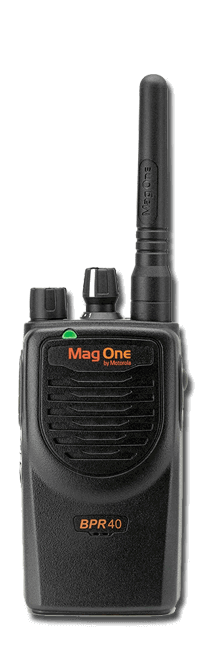

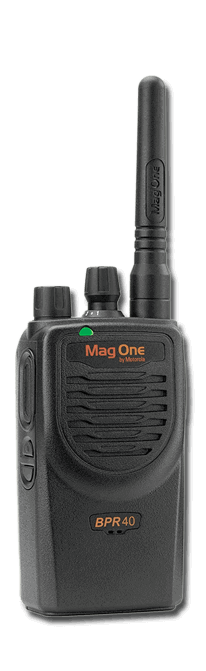

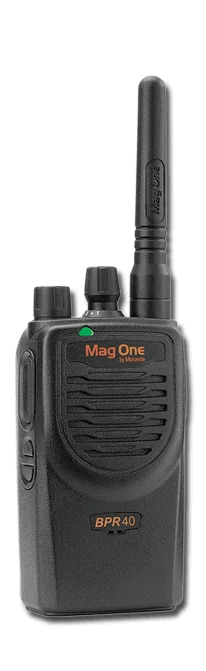

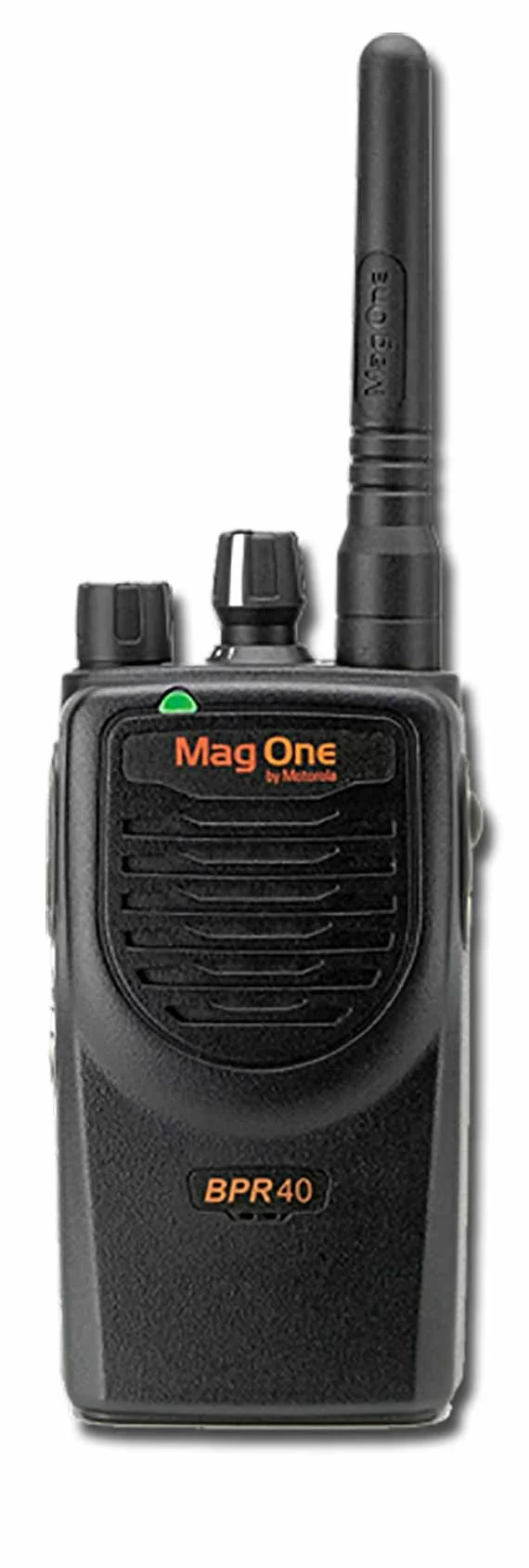

The BPR™40 portable two-way radio delivers reliable, intuitive communication through 8 channels and 2 programmable buttons. The high-/low-power option saves battery charge. Features such as nuisance channel delete and repeater talkaround make the radio a versatile, high-performance device. The BPR40 is part of the Mag One™ by Motorola radio portfolio. This affordable solution gives remarkable quality and value that is perfect for your business, and comes with a complete assortment of accessories to customize your radio.


Request a Quote

Performance

Frequency Range:
VHF:150 - 174 MHz; UHF: 450 - 470 MHz

Power Output:
1W/4W (UHF), 1W/5W (VHF)

Number of Channels/Zones:
8 or 16 Channels

Standard battery chemistry type:
Nickel Metal Hydride

Battery life (based on a 5-5-90 duty cycle):
8 hours (high power - 4W/5W); 11 hours (low power - 1W)

Channel spacing:
12.5/25 kHz

Physical

Dimensions H x W x D (with standard battery)
4.21 x 2.28 x 1.46 in.

Weight (with standard battery)
12.3 oz

Keypad / Keys
No Keypad

Display
No Display

User Enviroment

Operating temperature
-30° to +60° C (Radio Only)

Mil spec
810 C, 810 D, 810 E, 810 F

IP Standards
IPX4

Group communication
Operates over 8 or 16 channels.

Programmable buttons
Allow versatile customization of radio.

Diecast chassis
Small, lightweight, yet sturdy frame is built to withstand everyday wear and tear.

Flexible power
Offers high-power or low-power option, to save battery charge.

Nuisance channel delete
Temporarily removes undesired channels from a scan.

Repeater talkaround
Bypasses repeater and dispatcher for unit-to-unit communication.

Priority channel
Scans for higher-priority channels.

Tight/normal squelch
Filters out unwanted interference and enhances audio clarity.

Brochures

Spec Sheets

Antenna [+]

Motorola PMAD4051

PMAD4051AR

Antenna Stubby VHF 150-174 MHz

Motorola PMAE4020

PMAE4020AR

Mag One UHF 450-470 MHz Stubby Antenna

Batteries [+]

Motorola PMNN4071

PMNN4071

Battery NiMH 1200 mAh

Motorola PMNN4075

PMNN4075

Li-ion High Capacity 1500 mAh Battery

7.2V, 1500 mAh, Li-ion, 12month warranty

Motorola Mag One high capacity battery for the BPR40. 25% more capacity than the standard battery and it uses li-ion chemistry to give you 20% more talk time with less weight. Belt clip not included.

Carry Accessories [+]

Motorola PMLN4742

PMLN4742

Mag One Hard Leather Case

Motorola PMLN4743

PMLN4743

Mag One 2" Spring Belt Clip

Chargers [+]

Motorola EPNN9288

EPNN9288

90-134V, Switch Mode Power Supply with NA/LA Country Plug

Motorola PMLN5041

PMLN5041

Mag One Tri - Chemistry Rapid Charger Base

Motorola PMLN5048

PMLN5048

Mag One Tri - Chemistry Rapid Charger Kit Mag One Tri - Chemistry Rapid Charger Kit (includes Base, Power Supply & AC Cord)

Motorola RLN6350

RLN6350

Mag One Rapid Charger, Li-ion Battery Bundle Kit Mag One Rapid Charger, Li-ion Battery Bundle Kit (includes PMLN5048_R and PMNN4075)

Motorola RLN6393

RLN6393

Multi-Unit Charger

Earpieces [+]

Motorola PMLN4442

PMLN4442

Earbud with In-Line Microphone

Motorola PMLN4443

PMLN4443

Ear Receiver with In-Line Microphone

Motorola PMLN5001

PMLN5001

D-Style Earpiece with MIC/PTT (2 Pin)

Motorola PMLN4294

PMLN4294

Earbud with Mic & PTT Combined
Earbud with Microphone & Push-to-Talk Combined
The Pellet Style Earpiece allows the user to receive communication discreetly and is comfortable for extended wear

Motorola PMLN4605

PMLN4605

Replacement Clear Acoustic Tube

Motorola PMLN4606

PMLN4606

2-Wire Surveillance kit with Clear Acoustic Tube

Motorola PMMN4001

PMMN4001

Ultra-Light Earpiece with Boom Microphone and In-Line PTT

Image Not Available

RLN4894

Earpiece without Volume Control, Black (single wire)

Motorola RLN4895

RLN4895

2 Piece Surveillance Kit, with Microphone and PTT Combined, Black (2-wire - rubber eartip style)

Motorola RLN4941

RLN4941

Receive-Only Earpiece with Translucent Tube and Rubber Eartip An earphone jack located on the microphone allows the user to receive audio when using this earpiece. The translucent tube provides a more discreet option for those that need to receive messages privately

Headsets [+]

Motorola PMLN4445

PMLN4445

Ultra Lightweight Headset w/PTT

Motorola PMLN5003

PMLN5003

Lightweight Temple Transducer Headset

Motorola PMLN5011

PMLN5011

Temple Transducer Headset The PMLN5011 Temple Transducer Headset uses two bone vibration speakers for receiving, and a flexible boom microphone for transmitting. Unlike traditional headsets, the Temple Transducer allows the user's ears to be uncovered and completely free to hear surrounding environmental sounds while using the two-way portable radio. An in-line push-to-talk (PTT) button with clothing clip frees the user from holding the radio while communicating

Remote Speaker Mics [+]

Motorola PMMN4077

PMMN4077

Remote Speaker Microphone - Mag One

Motorola AARLN4885

AARLN4885

Receive-Only Covered Earbud with coiled cord
This earpiece is compatible with all Remote Speaker Microphones with a 3.5 mm audio jack on the head of the microphone.

The Motorola BPR40 is available in the following VHF and UHF models.

VHF

  • AAH84KDS8AA1AN 150-174 MHz, 5W (Ships 1W), 8 Channels
  • AAH84KDJ8AA1AN 150-174 MHz, 5W (Ships 1W), 16 Channels

UHF

  • AAH84RCS8AA1AN 450-470 MHz, 4W (Ships 1W), 8 Channels
  • AAH84RCJ8AA1AN 450-470 MHz, 4W (Ships 1W), 16 Channels
