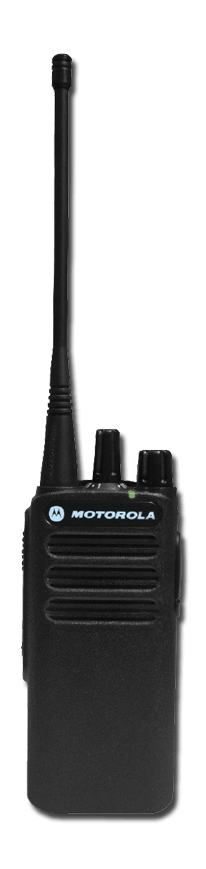

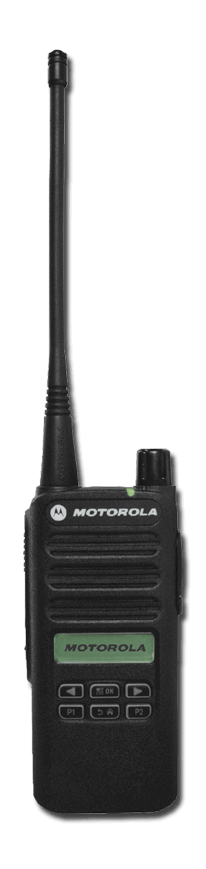

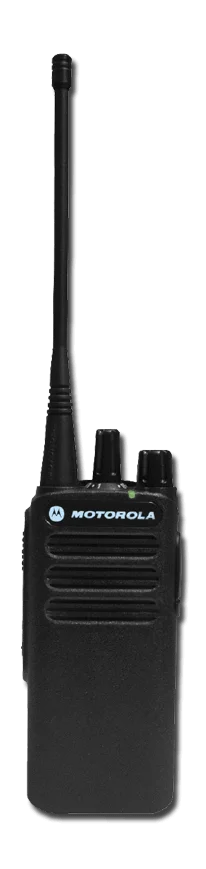

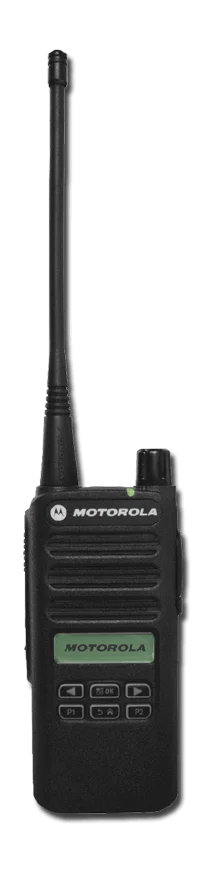

Motorola CP100d

  • Motorola Solutions CP100d
  • Motorola Solutions CP100d
Motorola

CP100d

The affordable CP100d radios offer all the benefits of digital technology – up to 35% longer talk-time, twice the voice capacity in a 12.5 kHz licensed channel, wider radio coverage, and superior audio. In digital mode, your MOTOTRBO radio provides clearer voice communications throughout the coverage area than analog radios, rejecting static and background noise.


Request a Quote

Performance

Frequency Band:
VHF, UHF

Frequency Range:
VHF (136-174 MHz); UHF (403-470 MHz)

Power Output:
VHF: 1-5 W, UHF: 1-4 W

Number of Channels/Groups/Zones:
Non Display: 16 Channels
Display: 160 Channels

Standard battery chemistry type:
Lithium Ion

Battery life (based on a 5-5-90 duty cycle):
Analog: 10.7 hrs/Digital: 14.4 hrs

Channel spacing:
12.5, 25 kHz

Physical

Dimensions H x W x D (with standard battery)
4.7 x 2.2 x 1.4 in (120.0 x 55.0 x 34.7 mm)

Weight (with standard battery)
Non-Display: 9.7 oz (276 g)
Display: 10.4 oz (295 g)

Keypad / Keys
Non-Display: None
Display: Limited

Display

User Enviroment

Operating temperature
-30°C / +60°C

Mil spec
810 D, 810 E

IP Standards
IP54

  • Analog/Digital: Get all the benefits of digital, including better voice quality, better range and better battery life—but retain compatibility with your existing radio fleet. With analog and digital capabilities, you have the freedom to migrate to the latest technology at your own pace.
  • Analog only: Purchase analog capability now and transition to digital capability when you're ready. All you will need is a simple software upgrade. Transmit Interrupt Capability (decode only): Enables a supervisor to interrupt a CP100d user to deliver critical communication exactly when and where it's needed.
  • Dual Capacity Direct Mode: Utilize the power of the 2-slot TDMA DMR standard to double the capacity of your 12.5 kHz channel—without the need for a repeater.
  • IP54 Rated: Dustproof and splashproof, so you can work with confidence in challenging environments. Compatible with Radio Management Suite: Program your radios quickly and efficiently, with the Radio Management tool. Radios can be programmed in batches to a standardized template, giving error-free results and optimized performance.

Brochures

Catalogs

Spec Sheets

UHF Antennas

Motorola PMAE4016

PMAE4016

UHF Wideband Whip Antenna (403-520 MHz), 17 cm
Image Not Available

8505816K24

UHF Heliflex Stubby (403-440 MHz), 9 cm
Image Not Available

PMAE4002

UHF Stubby Antenna (403-433 MHz), 9 cm
Image Not Available

PMAE4003

UHF Stubby Antenna (430-470 MHz), 9 cm
Motorola NAE6522AR

NAE6522AR

UHF Stubby Antenna (438-470 MHz), 9 cm

VHF Antennas

Image Not Available

PMAD4014

VHF Whip Antenna (136-155 MHz), 14 cm
Image Not Available

PMAD4042

VHF Heliflex Antenna (136-150.8 MHz), 14 cm
Image Not Available

NAD6502AR

VHF Heliflex Antenna (146-174 MHz), 15 cm
Image Not Available

PMAD4012

VHF Stubby Antenna (136-155 MHz), 9 cm
Image Not Available

HAD9742

VHF Stubby Antenna (146-162 MHz), 9 cm
Image Not Available

HAD9743

VHF Stubby Antenna (162-174 MHz), 9 cm

Motorola Original® Two-Way Radio Batteries

Motorola NNTN4851

NNTN4851

NiMH 1400 mAh battery
Motorola NNTN4970

NNTN4970

Slim Li-Ion 1600 mAh battery
Motorola NNTN4497

NNTN4497

High-Capacity Li-Ion 2250 mAh battery
Motorola PMNN4450

PMNN4450

High-Capacity Li-Ion 2800 mAh battery
Image Not Available

PMNN4072

Mag One NiMH 1300 mAh battery
Motorola PMNN4458

PMNN4458

Mag One Li-Ion 2050 mAh battery
Image Not Available

RLN5383

Hard Leather Case with 3” Fixed Belt Loop and D-rings (non-display model)
Image Not Available

RLN5384

Hard Leather Case with 2.5” Swivel Belt Loop and D-rings (non-display model)
Motorola RLN5385

RLN5385

Hard Leather Case with 3” Swivel Belt Loop and D-rings (non-display model)
Image Not Available

HLN9701

Nylon Case with 3” Fixed Belt Loop and D-rings (non-display model)
Motorola RLN5644

RLN5644

Spring Action 2” Belt clip
Motorola HLN8255

HLN8255

Spring Action 3” Belt clip
Image Not Available

HLN8096

Accessory Clamp
Image Not Available

4280483B03

Replacement 2.5” Swivel Belt Loop
Image Not Available

4280483B04

Replacement 3” Swivel Belt Loop
Image Not Available

RLN5716

Replacement T-Strap for leather cases
Motorola NTN5243

NTN5243

Adjustable Nylon Carrying Strap
Motorola RLN5500

RLN5500

Retainer Kit, provides additional protection when securing accessories to radio
Motorola HLN9985

HLN9985

Waterproof Bag with large strap for securely carrying Motorola two-way radios
Motorola HLN6602

HLN6602

Universal Chest Pack with radio holder, pen holder, and Velcro secured pouch
Motorola RLN4570

RLN4570

Break-a-Way Chest Pack with Radio Holder Pen Holder and Velcro-Secured pouch
Motorola RLN4815

RLN4815

Radio Pack Radio Utility Case
Motorola TDN9327

TDN9327

Radio Hanger for vehicle door panels up to 2.75 inches
Motorola TDN9373

TDN9373

Door Hanger for Radio and Vehicle door panels 2.75 to 3.25 inches
Motorola WPLN4138

WPLN4138

Rapid-Rate Desktop Charger, 120V (US Plug)
Image Not Available

PMLN5193

Rapid-Rate Charger with switchmode power supply, 120V (US Plug)
Motorola PMLN6588

PMLN6588

Universal Multi-Unit Charger, includes 6-inserts, 120V (US plug)
Motorola NNTN8460

NNTN8460

Charging Insert for Universal Multi-Unit Charger (PMLN6588)
Image Not Available

PMLN7089

Travel Charger with voltage-regulated vehicular charger adapter, custom charger base, mounting bracket, and coil cord

Surveillance Accessories and Earpieces

Image Not Available

PMLN6536

2-Wire Surveillance Kit with quick disconnect translucent tube, black
Image Not Available

PMLN6530

2-Wire Surveillance Kit with translucent tube, black
Image Not Available

PMLN6445

2-Wire Surveillance Kit with translucent tube, beige

Earpieces & Mag One™ Accessories

Motorola PMLN6533

PMLN6533

Earbud with combined microphone and PTT
Motorola PMLN6535

PMLN6535

D-Style Earpiece with microphone and push-to-talk
Image Not Available

BDN6720

Flexible Ear Receiver (Receive Only)
Motorola PMLN6532

PMLN6532

Mag One Swivel Earpiece with in-line microphone and push-to-talk
Motorola PMLN6534

PMLN6534

Mag One Earbud with in-line microphone, push-to-talk and VOX switch
Motorola PMLN6531

PMLN6531

Mag One Ear Receiver with in-line microphone, push-to-talk and VOX switch
Motorola PMLN6537

PMLN6537

Mag One Earset with boom microphone and in-line push-to-talk and VOX switch
Motorola PMLN6539

PMLN6539

Heavy-Duty Headset, over-the-head dual muff with swivel noise cancelling boom microphone (24dB NRR)
Motorola PMLN6540

PMLN6540

Heavy-Duty Headset, behind-the-head dual muff (hardhat compatible) with noise cancelling boom microphone, in-line push-to-talk and 24dB NRR
Image Not Available

PMLN6541

Lightweight Temple Transducer Headset with in-line microphone and push-to-talk
Motorola PMLN6538

PMLN6538

Lightweight Headset, over-the-head, single muff with swivel boom microphone
Motorola PMLN6542

PMLN6542

Mag One Ultra-Lite Headset, behind-the-head, adjustable with boom microphone and in-line push-to-talk
Motorola PMMN4029

PMMN4029

Windporting Remote Speaker Microphone, submersible (IP57)
Motorola PMMN4013

PMMN4013

Windporting Remote Speaker Microphone with 3.5mm audio jack (IP54)
Motorola PMMN4092

PMMN4092

Mag One Remote Speaker Microphone

The Motorola CP100d is available in the following models.

No Display Models

  • AAH87JDC9JA2AN 136-174 MHz, 5 Watts, 16 Channels
  • AAH87YDC9JA2AN 403-470 MHz, 4 Watts, 16 Channels

Display (Limited Keypad) Models

  • AAH87JDH9JA2AN 136-174 MHz, 5 Watts, 160 Channels
  • AAH87YDH9JA2AN 403-470 MHz, 4 Watts, 160 Channels

Display (Full Keypad) Models

  • AAH87JDF9JA2AN 136-174 MHz, 5 Watts, 160 Channels
  • AAH87YDF9JA2AN 403-470 MHz, 4 Watts, 160 Channels

Analog (No Keypad) Models

  • AAH87JDC9JC2AN 136-174 MHz, 5 Watts, 16 Channels
  • AAH87YDC9JC2AN 403-480 MHz, 4 Watts, 16 Channels
