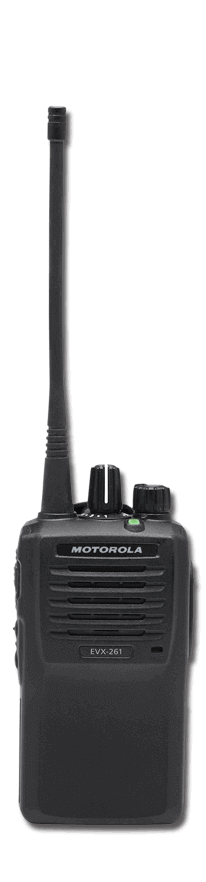

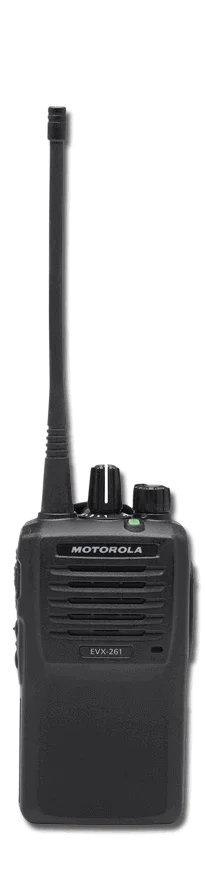

Motorola EVX-261

  • Motorola Solutions EVX261
Motorola

EVX-261

Motorola has canceled the EVX-261 Series. If you are looking for a replacement portable radio please see our range of Digital Radios.


Request a Quote

Performance

Frequency Band:
VHF, UHF R1, UHF R2.

Frequency Range:
VHF: D0:136-174 MHz
UHF: G6:403-470 MHz
UHF: G7:470-512 MHz

Power Output:
5/1W

Number of Channels/Groups/Zones:
16 Channels/ 1 Group

Standard battery chemistry type:
Lithium Ion

Battery life (based on a 5-5-90 duty cycle):
VHF
FNB-V133LI: 9.8 h (D)/8.1 h (A)
FNB-V134LI: 17.0 h (D)/14.0 h (A)

UHF
FNB-V133LI: 9.3 h (D)/8.0 h (A)
FNB-V134LI: 16.1 h (D)/13.6 h (A)

Channel spacing:
25/12.5 kHz

Physical

Dimensions H x W x D (with standard battery)
4.3 x 2.3 x 1.3 in (109.2 x 58.4 x 32.3 mm) with FNB-V133LI-UNI

Weight (with standard battery)
9.9 oz (281 g) (w/FNB-V133LI-UNI, Antenna, Belt Clip)
11.6 oz (330 g) (w/FNB-V134LI-UNI, Antenna, Belt Clip)

Keypad / Keys
None

Display
None

User Enviroment

Operating temperature
-22º F to +140º F (-30º C to +60º C)

Mil spec
810 C, 810 D, 810 E, 810 F, 810 G

IP Standards
IP55

Superior Audio Output

Excellent Audio performance allows for better message clarity so you can be heard loud and clear in all situations.

Expanded Interoperability

The EVX-261 boasts abundant signaling options such as MDC1200®, DTMF, 2-tone and 5-tone capabilities, as well as voice inversion encryption, providing seamless integration into a mixed fleet.

Safety Not Sacrificed

Emergency alert can be programmed to instantly notify help with a press of a button. Lone Worker is a built-in timer that requires the user to reset at a predetermined interval. If not reset, the radio automatically switches to Emergency mode to alert help. An ideal solution for supervisors to monitor the safety status of radio users working alone. VOX capable with accessory.

Universal Battery System – One Size Fits All

The Universal Battery System for Motorola portable radios takes energy interoperability to a new level by utilizing a single charger base to support multiple radio series when used with designated UNI batteries. Eliminate equipment clutter and confusion by consolidating down to one battery and charging platform and increase your productivity.

Motorola EVX-261 Features

  • 16 channels
  • 2 Programmable Keys
  • 700 mW Internal Speaker
  • MDC1200® ANI Encode
  • FleetSync® ANI Encode
  • DTMF ANI Encode
  • 2-Tone Encode/Decode
  • 5-Tone Encode/Decode
  • CTCSS / DCS Encode and Decode
  • Emergency
  • Lone Worker
  • Multiple Scan Options
  • ARTS™
  • Internal VOX (when used with VOX accessory)
  • 3 Year Warranty

Brochures

Spec Sheets

UHF Antennas

Image Not Available

AAE23X501

ATU-6A: 400-430 MHz 6.5”
Image Not Available

AAE23X506

ATU-6B: 420-450 MHz 6.1"
Image Not Available

AAE23X502

ATU-6C: 440-470 MHz 6.1”
Image Not Available

AAE23X503

ATU-6D: 450-485 MHz 6”
Image Not Available

AAE20X503

ATU-6DS: 450-485 MHz 3.5”
Image Not Available

AAE23X504

ATU-6F: 490-512 MHz 5.35”

VHF Antennas

Image Not Available

AAE19X502

ATV-6B: 150-163 MHz 3.5”
Image Not Available

AAE19X503

ATV-6C: 161-174 MHz 3.5”
Image Not Available

AAG42X501

ATV-6XL: Untuned VHF 7”
Image Not Available

AAE24X501

ATV-8A: 134-150 MHz 6”
Image Not Available

AAE24X502

ATV-8B: 150-163 MHz 6”
Image Not Available

AAE24X503

ATV-8C: 162-174 MHz 6”
Image Not Available

AAJ67X501

FNB-V133LI-UNI: 1380 mAh Li-Ion
Image Not Available

AAJ68X501

FNB-V134LI-UNI: 2300 mAh Li-Ion
Image Not Available

AAM03X511

LCC-261: Leather Case, Belt Loop (FNB-V133LI)
Image Not Available

AAM03X512

LCC-261H: Leather Case, Belt Loop (FNB-V134LI)
Image Not Available

AAM03X513

LCC-261S: Leather Case, Swivel Belt Loop (FNB-V133LI)
Image Not Available

AAM03X514

LCC-261SH: Leather Case, Swivel Belt Loop (FNB-V134LI)
Image Not Available

AAM04X501

LCC-264: Leather Case, Belt Loop (FNB-V133LI)
Image Not Available

AAM04X502

LCC-264H: Leather Case, Belt Loop (FNB-V134LI)
Image Not Available

AAM04X503

LCC-264S: Leather Case, Swivel Belt Loop (FNB-V133LI)
Image Not Available

AAM04X504

LCC-264SH: Leather Case, Swivel Belt Loop (FNB-V134LI)
Image Not Available

AAH12X501

CLIP-20: Belt Clip
Image Not Available

CD-58: Charger Base
Image Not Available

PA-55: AC Adaptor
Image Not Available

XUAAK44X501

VAC-6058: MUC Charger (Multiple Plugs for Both Regions)
Image Not Available

AAK45X501

VCM-5: Vehicular Charger Mounting Adaptor
Image Not Available

AAK50X501

MH-37A4B-1: Earpiece Microphone
Image Not Available

AAL82X501

MH-100: Rx Only Earpiece, 3.5mm for Use with MH-450S
Image Not Available

AAL83X501

MH-101A4B: Single Wire Surveillance Kit
Image Not Available

AAL84X501

MH-102A4B: 2-Wire Surveillance Kit
Image Not Available

AAL85X501

MH-103A4B: 3-Wire Surveillance Kit
Image Not Available

AAL41X501

VH-150B: VOX Capable Lightweight Headset, Over-the-Head
Image Not Available

AAM02X501

MH-201A4B: Heavy-Duty Headset, OTH, IS
Motorola MH-360S

AAF52X501

MH-360S: Compact Speaker Microphone with 3.5mm Audio Jack
Motorola MH-450S

AAF53X501

MH-450S: Speaker Microphone with 3.5mm Audio Jack
Image Not Available

A13960507

MH-45B4B: Noise Cancelling Speaker Microphone with 3.5mm Audio Jack
Image Not Available

AAE46X507

MH-66A4B IP57: Submersible Speaker Microphone

The Motorola EVX-261 is available in the following VHF and UHF models.

UHF

  • AC137U502-MOT-NA 403-470 MHz, 16 Channels, 1-5 Watt
  • AC137U501-MOT-NA 450-512 MHz, 16 Channels, 1-5 Watt

VHF

  • AC137N501-MOT-NA 136-174 MHz, 16 Channels, 1-5 Watt
