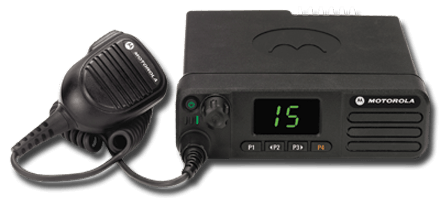

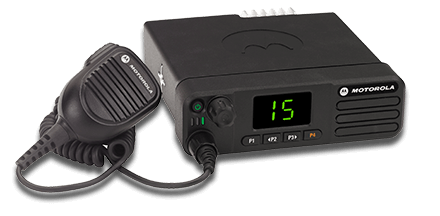

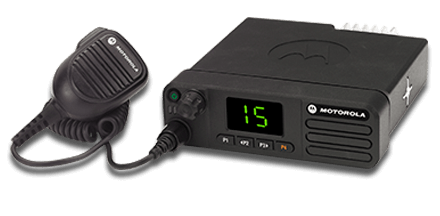

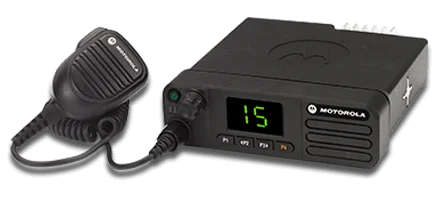

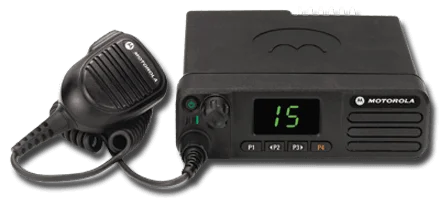

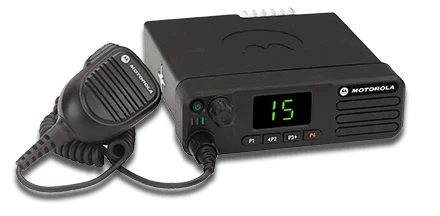

Motorola XPR 5380e

  • Motorola Solutions XPR 5380e
  • Motorola Solutions xpr5380e
  • Motorola Solutions xpr5380e
Motorola

XPR 5380e

With this dynamic evolution of MOTOTRBO digital two-way radios, you're better connected, safer and more productive. The XPR 5380e is designed for the skilled professional who refuses to compromise. With high-performance integrated voice and data, and advanced features for efficient operation, these next-generation radios deliver complete connectivity to your organization.

Here's what's new in these next-generation radios:

  • Integrated Wi-Fi
  • Over-the-air software updates
  • Bluetooth® 4.0
  • Indoor location tracking

Request a Quote

Performance

Frequency Band:
800 MHz, 900 MHz

Frequency Range:
800/900: 806-825 MHz; 851-870 MHz; 896-902 MHz; 935-941 MHz

Power Output:
High Power Output:
800: 10-35 W
900: 10-30 W

Low Power Output:
1-25 W

Channel spacing:

Physical

Dimensions H x W x D (with standard battery)
2.1 x 6.9 x 8.1 in (53 x 175 x 206 mm)

Weight (with standard battery)
3.9 lb. (1.8 kg)

Keypad / Keys
None

Display
Numeric, LED indicators , Monochrome, Alphanumeric, Color, Day and night mode

User Enviroment

Operating temperature
-22 °F to 140 °F (-30 °C to +60 °C)

Mil spec
810 C, 810 D, 810 E, 810 F, 810 G

IP Standards
IP54

Connected
The XPR 5000e Series is a family of DMR-standard digital radios that delivers operations-critical voice and data communications. Bluetooth® audio lets you talk without wires, integrated Wi-Fi enables remote software updates and indoor and outdoor location-tracking capabilities give you total visibility of your resources. With support for trunking as well as legacy analog technology, you can keep your organization connected as it grows.

Productive
Text messaging and Work Order Ticketing simplify complex communications, and data capabilities support advanced applications. Featuring a high power audio amplifier, these radios deliver loud, clear speech, with background noise cancellation for better intelligibility. XPR 5000e Series radios are also ideal as a dispatch solution, with desktop microphones and a rugged, durable design for everyday use.

Safe
Safeguard your staff with responsive push-to-talk technology. The quick access buttons on XPR 5000e Series radios can summon help with one touch, using Transmit Interrupt to clear a channel when necessary. A range of safe driving accessories allows your workers to communicate hands-free and text-to-speech technology helps your drivers keep their eyes on the road.

Brochures

Data Sheets

Videos

Communications are Evolving: Next-Generation MOTOTRBO Two-way Radios

From the production line to the power line, MOTOTRBO radios are helping people work more efficiently, productively and safely. MOTOTRBO delivers game-changing advantages along with business-essential systems, applications and accessories.

Combination GPS/UHF Antennas

Motorola PMAE4030

PMAE4030

GPS/UHF Combination 1/4 Wave Antenna for the 403-430 MHz range
Motorola PMAE4031

PMAE4031

GPS/UHF Combination 1/4 Wave Antenna for the 450-470 MHz range
Motorola PMAE4032

PMAE4032

GPS/UHF Combination Antenna for the 406-420 MHz range, 3.5 dB Gain
Motorola PMAE4033

PMAE4033

GPS/UHF Combination Antenna for the 450-470 MHz range, 3.5 dB Gain
Motorola PMAE4034

PMAE4034

GPS/UHF Combination Antenna for the 450-470 MHz range, 5 dB Gain
Motorola HAE6019

HAE6019

GPS/UHF Combination Antenna for the 403-527 MHz range, 2 dB Gain
Motorola HAE6020

HAE6020

GPS/UHF Combination 1/4 Wave Antenna for the 470-527 MHz range
Motorola HAE6024

HAE6024

GPS/UHF Combination Through-Hole Mount Antenna for 470-494 MHz, 3.5 dB Gain
Motorola HAE6026

HAE6026

GPS/UHF Combination Through-Hole Mount Antenna, 494-512 MHz, 3 dB Gain

UHF Antennas (RF only)

Motorola HAE4010

HAE4010

UHF Wide Area Through-Hole Mount Antenna for the 406-420 MHz range, 3.5 dB Gain, Mini-U
Motorola HAE4011

HAE4011

UHF Wide Area Through-Hole Mount Antenna for the 450-470 MHz range, 3.5 dB Gain, Mini-U
Motorola HAE4012

HAE4012

UHF Wide Area Through-Hole Mount Antenna for the 470-494 MHz range, 3.5 dB Gain
Motorola HAE6022

HAE6022

UHF Wide Area Through-hole Mount Antenna for the 403-527 MHz range 2dB Gain, Mini-U
Motorola RAE4004ARB

RAE4004ARB

UHF Wide Area Through-Hole Mount Antenna for the 445-470 MHz range, 5 dB Gain, Mini-U (with base)
Motorola HAE4002

HAE4002

UHF Urban Roof Mount 1/4 Wave Antenna for the 403-430 MHz range, Mini-U
Motorola HAE4003

HAE4003

UHF Urban Roof Mount 1/4 Wave Antenna for the 450-470 MHz range, Mini-U
Motorola HAE4004

HAE4004

UHF Urban Roof Mount 1/4 Wave Antenna for the 470-512 MHz range, Mini-U
Motorola HAE4013

HAE4013

UHF Wide Area Roof Mount Antenna for the 494-512 MHz range, 3.5 dB Gain
Motorola RAE4163ARB

RAE4163ARB

UHF Stubby Through hole Mount Antenna, 410-430 MHz
Motorola RAE4164ARB

RAE4164ARB

UHF Stubby Through hole Mount Antenna, 430-450 MHz
Motorola RAE4168ARB

RAE4168ARB

UHF Stubby Through hole Mount Antenna, 450-470 MHz
Image Not Available

PMAE4039

UHF Antenna Kit 403-430 MHz, 1/4 Wave
Image Not Available

PMAE4041

UHF Antenna Kit 450-470 MHz, 1/4 Wave
Image Not Available

PMAE4042

UHF Antenna Kit 450-470 MHz, 3.5 dB Gain
Image Not Available

PMAE4043

UHF Antenna Kit 450-470 MHz, 5.0 dB Gain
Image Not Available

HAE6030

UHF Antenna Kit 470-527 MHz, 1/4 Wave, Through-hole Mount
Motorola HAE6029

HAE6029

UHF Antenna Kit 403-527 MHz, 2 dB Gain, Through-hole Mount
Image Not Available

HAE6028

UHF Antenna Kit 470-494 MHz, 3 dB Gain, Through-hole Mount
Image Not Available

HAE6027

UHF Antenna Kit 494-512 MHz, 3 dB Gain, Through-hole Mount

Combination GPS/VHF Antennas

Motorola RAD4214

RAD4214

GPS/VHF Combination Through-Hole Mount 1/4 wave Antenna for the 136-144 MHz range
Motorola RAD4215

RAD4215

GPS/VHF Combination Through-Hole Mount 1/4 wave Antenna for the 146-150.8 MHz range
Image Not Available

RAD4216

GPS/VHF Through-Hole Mount 1/4 wave Antenna for the 150.8-162 MHz range
Motorola RAD4217

RAD4217

GPS/VHF Through-Hole Mount 1/4 wave Antenna for the 162-174 MHz range
Motorola RAD4218

RAD4218

GPS/VHF Through-Hole Mount Antenna for the 146-172 MHz range, 3 dB Gain

VHF Antennas (RF Only)

Motorola HAD4006

HAD4006

VHF Urban Roof Mount 1/4 Wave Antenna for the 136-144 MHz range, Mini-U
Motorola HAD4007

HAD4007

VHF Urban Roof Mount 1/4 Wave Antenna for the 146-150.8 MHz range, Mini-U
Motorola HAD4008

HAD4008

VHF Urban Roof Mount 1/4 Wave Antenna for the 150.8-162 MHz range, Mini-U
Motorola HAD4009

HAD4009

VHF Urban Roof Mount 1/4 Wave Antenna for the 162-174 MHz range, Mini-U
Motorola HAD4022

HAD4022

VHF Wide Area Through-hole Mount Antenna for the 132-174 MHz range 3dB Gain, Mini-U

Standalone GPS Antennas

Motorola PMAN4000

PMAN4000

Fixed Mount GPS Active Antenna
Motorola PMAN4001

PMAN4001

Glass Mount GPS Active Antenna
Motorola PMAN4002

PMAN4002

Magnetic Mount GPS Active Antenna

Combination GPS/800/900 Antennas

Motorola HAF4029

HAF4029

GPS/800/900 MHz 1/4 Wave Through-Hole Mount Combination Antenna for the 806-941 MHz range
Motorola HAF4030

HAF4030

GPS/800/900 MHz Through-Hole Mount Combination Antenna for the 806-941 MHz range, 3 dB Gain
Motorola HAF4032

HAF4032

GPS/800/900 MHz Stubby Antenna for the 806-941 MHz range
Motorola HAF4033

HAF4033

GPS/800/900 MHz Through-Hole Mount Antenna for the 806-941 MHz range, 5 dB Gain

Combination GPS + RF

Image Not Available

PMAN4004

Kit, Combination GPS+RF, Base Only, Through-hole Mount, Mini-U

800/900 VHF Antennas (RF only)

Motorola HAF4013

HAF4013

Wide Area Through-Hole Mount Stubby Antenna for the 806-941 MHz range, 3 dB Gain
Motorola HAF4025

HAF4025

Urban Through-Hole Mount 1/4 Wave Antenna for the 806-941 MHz range
Motorola HAF4026

HAF4026

Wide Area Through-Hole Mount Antenna for the 806-941 MHz range, 3 dB Gain
Motorola HAF4027

HAF4027

Wide Area Through-Hole Mount Antenna for the 806-941 MHz range, 5 dB Gain

Antenna Accessories

Motorola HKN9088

HKN9088

Mobile Mini-U Antenna Adapter, 8-foot cable
Motorola HKN9557

HKN9557

PL259/Mini-U Antenna Adapter, 8-foot cable
Motorola RSN4005

RSN4005

Desktop Tray with speaker
Motorola GLN7318

GLN7318

Desktop Tray without speaker
Motorola HKN9088

HKN9088

Adapter Cable for Control Station
Motorola HPN4007

HPN4007

Power Supply, 25-60W, 1-60W cord included
Motorola GPN6145

GPN6145

Switchmode Power Supply, 1-25W radios only with provision for back-up battery hook-up
Motorola GKN6266

GKN6266

Power Supply Cable for GPN6145
Motorola 3060665A04

3060665A04

US Line cord for GPN6145
Motorola HKN9557

HKN9557

Mini-UHF to PL259 antenna adapter cable
Motorola RLN6466

RLN6466

Low Profile Trunnion Kit keeps radio tucked up under dash
Motorola RLN6467

RLN6467

High Profile Trunnion Kit with under dash or floor mount
Motorola RLN6468

RLN6468

Key Lock Trunnion Kit provides extra protection from theft
Motorola RLN6465

RLN6465

Direct In Dashboard Mounting Kit
Motorola PMLN6404A

PMLN6404A

MOTOTRBO Mobile Remote Mount Adapter Kit

Cables

Motorola PMKN4144

PMKN4144

Mobile Remote Mount 5-Meter Cable Kit
Motorola PMKN4143

PMKN4143

Mobile Remote Mount 3-Meter Cable Kit
Motorola HKN4191

HKN4191

Power Cable to Battery, 10 foot, 20 amp for 1 to 60W radios, 12 AWG
Motorola HKN4192

HKN4192

Power Cable to Battery, 20 foot, 20 amp for 1 to 60W radios, 10 AWG
Motorola HKN4137

HKN4137

Power Cable to Battery, 10 foot, 15 amp for 1 to 25W radios, 14 AWG
Motorola RKN4136

RKN4136

Ignition Sense Cable
Motorola PMKN4010

PMKN4010

Mobile and Repeater Rear Accessory Programming Cable
Image Not Available

PMKN4016

Mobile and Repeater Rear Programming, Test and Alignment Cable
Image Not Available

PMKN4018

Mobile Rear Accessory Connector Universal Cable
Motorola HKN6184

HKN6184

Mobile Front Programming Cable
Motorola PMLN5072

PMLN5072

Hardware Kit for Rear Accessory Connector

External Push-to-Talk (PTT)

Motorola RLN5926

RLN5926

Pushbutton push-to-talk to interface with your visor microphone
Motorola RLN5929

RLN5929

Emergency Footswitch can be used with a visor microphone
Motorola RMN5127

RMN5127

IMPRES Keypad Microphone with 4-way navigation button
Motorola PMLN7131

PMLN7131

MOTOTRBO Mobile Handheld Control Head Upgrade Kit with 3M Straight Cable
Motorola PMKN4174

PMKN4174

MOTOTRBO Mobile Handheld Control Head 5 Meter Straight Extension Cable
Motorola RMN5052

RMN5052

Standard Compact Microphone
Motorola RMN5053

RMN5053

IMPRES Heavy-Duty Microphone
Motorola HMN4098

HMN4098

IMPRES Telephone Style Handset
Motorola RMN5054

RMN5054

IMPRES Visor Microphone
Motorola RMN5050

RMN5050

Desktop Microphone

Mobile Microphone Accessories

Motorola HLN9073

HLN9073

Microphone Hang-Up Clip (Requires installation)
Motorola HLN9414

HLN9414

Universal Microphone Hang-Up Clip (No installation required)
Motorola PMKN4033

PMKN4033

10-Foot Mobile Microphone Extension Cable
Motorola PMKN4034

PMKN4034

20-Foot Mobile Microphone Extension Cable

Long Range Wireless

Motorola RLN6551

RLN6551

Long Range Wireless Kit with charger Includes: Long Range Wireless RSM; Mobile Mic Bluetooth Gateway; Vehicular Charger
Motorola RLN6552

RLN6552

Long Range wireless kit Includes: Long Range Wireless RSM; Mobile Mic Bluetooth Gateway
Motorola PMLN7120

PMLN7120

Dual unit charger (Charger base with US power supply)
Motorola 25012022001

25012022001

Power Supply for Dual Unit Charger US
Motorola PMMN4097

PMMN4097

Mobile Microphone with Bluetooth Gateway
Motorola RLN6544

RLN6544

Wireless RSM (Remote Speaker Microphone) with Battery and Clip
Motorola PMNN4461

PMNN4461

Wireless RSM Battery, 1750mA Li-ion 3.6 VDC
Motorola PMLN6716

PMLN6716

Vehicular Charger with coil cord cigarette lighter plug
Motorola HLN5391

HLN5391

Hang Up Clip, required for vehicular charger
Image Not Available

42009312001

D Ring Swivel Clip
Motorola RLN4941

RLN4941

Receive-Only Earpiece with Comfort Eartube
Motorola AARLN4885

AARLN4885

Receive-Only Earbud

Operations-Critical Wireless Bluetooth® Accessories

Motorola NNTN8125

NNTN8125

Operations-Critical Wireless Earpiece with 12-inch cable
Motorola PMLN7052

PMLN7052

Operations-Critical Wireless 1-Wire Surveillance kit with quick disconnect translucent tube
Motorola NNTN8294

NNTN8294

Operations-Critical Wireless Earbud with 11.5-inch cable
Motorola NNTN8295

NNTN8295

Operations-Critical Wireless Earbud with 45-inch cable
Motorola NNTN8127

NNTN8127

Operations-Critical Wireless push-to-talk pod
Image Not Available

PMLN6500

Bluetooth Accessory Kit with swivel earpiece and battery clip (PTT on radio or with separate wireless PTT)
Motorola PMLN7181

PMLN7181

Bluetooth Accessory Kit with Flexible Fit swivel earpiece with Boom Microphone and charging cradle (PTT on radio or with separate wireless PTT)
Motorola RLN6490

RLN6490

XBT Operations-Critical Wireless Behind-the-Neck Headset
Motorola RLN6491

RLN6491

XBT Operations-Critical Wireless Headband Style Headset

Wireless Replacement Kits

Motorola NTN2572

NTN2572

Mission-Critical/Operations-Critical Replacement Wireless Earpiece with 12-inch cable
Motorola NTN8821

NTN8821

Wireless Earpiece Maintenance Kit with 10 silicone ear tubes, 10 microphone seal strips and 2 foam windscreens
Motorola NTN8988

NTN8988

Ear strap for comport earpiece (pack of 10)
Motorola RLN5037

RLN5037

Eartube for comport earpiece (pack of 10)
Motorola NNTN8361

NNTN8361

Replacement ear tips for wireless earbuds (20 small, 20 medium, 20 larger and 10 clips)
Motorola PMPN4027

PMPN4027

Replacement or spare micro-USB plug-in charger (US plug) for wireless pod
Motorola PMLN6246A

PMLN6246A

Swivel clip for Operations-Critical Wireless pod and Enhanced Operations-Critical Wireless pod
Motorola RLN6550

RLN6550

Swivel Earpiece with in-line microphone Multi-Pack (3 pack) for MOTOTRBO Bluetooth Accessory Kit
Motorola PMLN7203

PMLN7203

Flexible Fit Swivel Earpiece with Boom Microphone Multi-Pack (3 pack) for MOTOTRBO Bluetooth Accessory Kit
