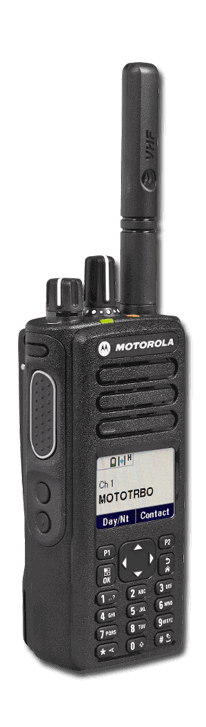

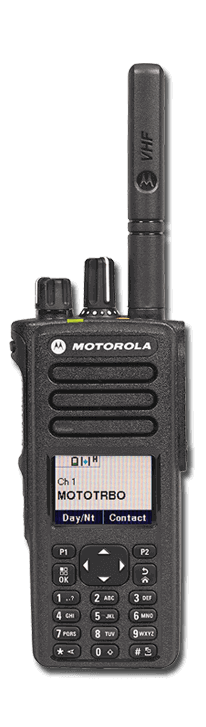

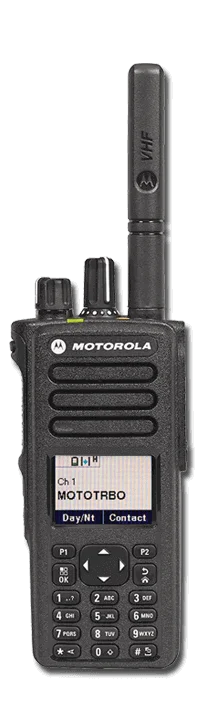

Motorola XPR 7000e

  • Motorola Solutions XPR 7000e
  • Motorola Solutions xpr7000e
Motorola

XPR 7000e

Motorola has canceled the XPR 7000e Series as of September 2023. If you are looking for a replacement portable radio we suggest the Motorola MOTOTRBO R7.


Request a Quote

Performance

Frequency Band:
UHF, VHF, 800 MHz, 900 MHz

Frequency Range:
VHF: 136-174 MHz
UHF: 403-527 MHz
800 MHz: 806-825 MHz, 851-870 MHz
900 MHz: 896-902 MHz, 935-941 MHz

Power Output:
1 - 5 W

Number of Channels/Groups/Zones:
32 / 1000 Channels

Standard battery chemistry type:
Lithium Ion

Battery life (based on a 5-5-90 duty cycle):
Digital/Analog Battery Life, High-Capacity 2250 mAh Battery:
XPR 7550e VHF: 22.0/16.5 hours
XPR 7550e UHF: 21.0/16.0 hours
XPR 7580e 800/900: 21.0/17.5 hours
XPR 7350e VHF: 22.0/16.5 hours
XPR 7350e UHF: 21.0/16.0 hours
XPR 7380e 800/900: 22.0/16.5 hours

Digital /Analog Battery Life, Low Voltage 3000 mAh Battery:
XPR 7550e VHF: 29.0/22.0 hours
XPR 7550e UHF: 28.0/21.5 hours
XPR 7580e 800/900: 28.0/23.0 hours
XPR 7350e VHF: 29.0/22.0 hours
XPR 7350e UHF: 28.0/21.5 hours
XPR 7380e 800/900: 28.0/23.0 hours

Channel spacing:
12.5, 25

Physical

Dimensions H x W x D (with standard battery)
XPR 7550e and XPR 7580e : 5.1 x 2.2 x 1.4 in (130 x 55 x 36 mm)
XPR 7350e and XPR 7380e: 5.1 x 2.2 x 1.3 in (130 x 55 x 34 mm)

Weight (with standard battery)
XPR 7550e and XPR7580e: 11 oz (315 g)
XPR 7350e and XPR7380e: 10 oz (290 g)

Keypad / Keys
XPR 7550e and XPR 7580e: Full Keypad
XPR 7350e and XPR 7380e: No Keypad

Display
XPR 7550e and XPR 7580e: Color Display
XPR 7350e and XPR 7380e: No Display

User Enviroment

Operating temperature
-22 °F to 140 °F (-30 °C to +60 °C)

Mil spec
810 C, 810 D, 810 E, 810 F, 810 G

IP Standards
IP68

  • Best-in-class Audio:
    The loud front-facing speaker and the Intelligent Audio feature automatically adjust the radio volume according to the environment's noise level.
  • Day/Night Mode on Display:
    This display has improved resolution for easier viewing even in broad daylight. It also features a night mode that makes the screen easier to read in dark environments.
  • Embedded Bluetooth Audio and Data:
    Embedded into the radio and enables connectivity with wireless accessories, including Motorola's unique Operations-Critical Wireless earpieces designed for rugged and reliable communications. Share real-time information easily by connecting radios to Bluetooth-enabled data devices.
  • Text Messaging:
    Use text messaging when discretion is required or routine communication needs to be delivered without interrupting workers or guests.
  • Certified Intrinsically Safe (UL):
    Certified as intrinsically safe by UL approvals when purchased and equipped with a UL battery for use in hazardous environments.
  • Basic or Enhanced Privacy:
    Built-in scrambling for increased security.
  • Large, Full-color Display:
    Features a 5-line color display with a flexible menu-driven interface. Icons and large easy-to-use navigation buttons ease message reading and menu navigation.
  • Transmit Interrupt:
    Enables a user to interrupt another radio conversation to deliver critical communication exactly when and where it's needed.
  • Integrated GPS:
    Locate mobile work teams using integrated GPS.
  • Productivity-enhancing Data Applications:
    Features the industry's largest application developer program to enable a wide variety of customized applications including: location tracking, Bluetooth data, email gateways, dispatch, telephony, man-down and work order ticket management.
  • Rugged Design:
    Tightly sealed against wind and dust, and submersible in up to one meter of water for 30 minutes (IP68).
  • Emergency Button:
    The orange button on the top of the radio can be programmed to send an alert to a supervisor or dispatcher during an emergency.

Brochures

Data Sheets

Videos

Communications are Evolving: Next-Generation MOTOTRBO Two-way Radios

From the production line to the power line, MOTOTRBO radios are helping people work more efficiently, productively and safely. MOTOTRBO delivers game-changing advantages along with business-essential systems, applications and accessories.

Motorola PMAE4079

PMAE4079

UHF/GPS Combination Wideband Slim Whip Antenna (403-527 MHz)

Motorola PMAD4117

PMAD4117

VHF/GPS Combination Helical Antenna (136-155 MHz)

Motorola PMAD4116

PMAD4116

VHF/GPS Combination Helical Antenna (144-165 MHz)

Motorola PMAD4118

PMAD4118

VHF/GPS Combination Helical Antenna (152-174 MHz)

Motorola PMAE4069

PMAE4069

UHF/GPS Combination Stubby Antenna (403-450 MHz)

Motorola PMAE4070

PMAE4070

UHF/GPS Combination Stubby Antenna (440-490 MHz)

Motorola PMAE4071

PMAE4071

UHF/GPS Combination Stubby Antenna (470-527 MHz)

Motorola PMAD4119

PMAD4119

VHF/GPS Combination Stubby Antenna (136-148 MHz)

Motorola PMAD4120

PMAD4120

VHF/GPS Combination Stubby Antenna (146-160 MHz)

Motorola PMAD4121

PMAD4121

VHF Stubby Antenna (160-174 MHz)

Image Not Available

PMAD4137

VHF Stubby Antenna (300-337 MHz)

Image Not Available

PMAD4135

VHF Stubby Antenna (320-360 MHz)

Image Not Available

PMAD4136

VHF Stubby Antenna (350-380 MHz)

Image Not Available

PMAD4133

VHF Stubby Antenna (360-400 MHz)

Image Not Available

PMAD4138

VHF Whip Antenna (300-360 MHz)

Image Not Available

PMAD4139

VHF Whip Antenna (350-400 MHz)

Motorola PMAF4011

PMAF4011

800 MHz Flexible Whip Antenna (806-870 MHz)

Motorola PMAF4012

PMAF4012

900 MHz Flexible Whip Antenna (896-941 MHz)

Motorola PMAF4009

PMAF4009

800/900 Stubby Antenna (806-870 MHz)

Motorola PMAF4010

PMAF4010

800/900 Stubby Antenna (896-941 MHz)

Motorola Original® Two-Way Radio Batteries

Motorola PMNN4407

PMNN4407

IMPRES Slim Li-Ion 1500 mAh battery Submersible (IP57)

Motorola PMNN4409

PMNN4409

IMPRES Li-Ion 2150 mAh battery Submersible (IP57)

Motorola PMNN4435

PMNN4435

Long life (LiMn) 1300 mAh battery Submersible (IP57), -30ºC rated

Motorola PMNN4448

PMNN4448

IMPRES Hi-Cap Li-Ion 2700 mAh battery Submersible (IP57)

Motorola NNTN8129

NNTN8129

IMPRES Li-Ion 2300 mAh battery Submersible (IP57), Intrinsically safe (FM)

Motorola NNTN8560

NNTN8560

IMPRES Hi-Cap Li-Ion 2500 mAh battery Submersible (IP57), Intrinsically safe (TIA4950)

Motorola PMLN5844

PMLN5844

Nylon Case with 3-inch Fixed Belt Loop (full keypad model)

Motorola PMLN5842

PMLN5842

Hard Leather Case with 2.5-inch Swivel Belt Loop (full keypad model)

Motorola PMLN5840

PMLN5840

Hard Leather Case with 3-inch Swivel Belt Loop (full keypad model)

Motorola PMLN5838

PMLN5838

Hard Leather Case with 3-inch Fixed Belt Loop (full keypad model)

Motorola PMLN5845

PMLN5845

Nylon Case with 3-inch Fixed Belt Loop (non-display model)

Motorola PMLN5843

PMLN5843

Hard Leather Case with 2.5-inch Swivel Belt Loop (non-display model)

Motorola PMLN5843

PMLN5843

Hard Leather Case with 3-inch Swivel Belt Loop (non-display model)

Motorola PMLN5839

PMLN5839

Hard Leather Case with 3-inch Fixed Belt Loop (non-display model)

Motorola HLN9985

HLN9985

Waterproof Bag with large strap for securely carrying Motorola two-way radios

Motorola 4200865599

4200865599

1.75-inch Wide Leather Belt

Motorola HLN6602

HLN6602

Universal Chest Pack with Radio Holder, Pen Holder and Velcro-Secured Pouch

Motorola RLN4570

RLN4570

Break-a-Way Chest Pack with Radio Holder Pen Holder and Velcro-Secured Pouch

Image Not Available

1505596Z02

Replacement Strap for HLN6602 and RLN4570

Motorola RLN4815

RLN4815

Radio Pack Radio Utility Case

Motorola 4280384F89

4280384F89

Radio Pack Extension Belt for waists larger than 40 inches

Motorola NTN5243

NTN5243

Adjustable Nylon Carrying Strap

Motorola RLN6486

RLN6486

Leather Radio Strap

Motorola RLN6487

RLN6487

Leather Radio Strap - XL

Motorola RLN6488

RLN6488

Anti-Sway Strap for Leather Radio Straps

Motorola 15012157001

15012157001

Accessory Connector Dust Cover

Desktop, Single & Multi-unit Chargers

Motorola WPLN4232

WPLN4232

IMPRES Single-Unit Rapid Rate Charger, 120V (US Plug)

Motorola WPLN4212

WPLN4212

IMPRES Multi-Unit Rapid Rate Charger with 1 Display, 120V (US plug)

Motorola WPLN4219

WPLN4219

IMPRES Multi-Unit Rapid Rate Charger with 6 Displays, 120V (US plug)

Motorola RLN5382

RLN5382

Display Module for IMPRES Multi-Unit Charger

Motorola NLN7967

NLN7967

Wall Mount Bracket for IMPRES Multi-Unit Charger

Vehicular and Travel Chargers

Motorola NNTN7616

NNTN7616

IMPRES Single-Unit Rapid Rate Vehicular Charger, heavy-duty permanent mount

Motorola NNTN8525

NNTN8525

Travel Charger, Rapid Rate with voltage-regulated adapter, custom charger base, mounting bracket and coil cord

Motorola PMLN6125

PMLN6125

1-Wire Receive-only earpiece, black

Motorola PMLN6126

PMLN6126

1-Wire Receive-only earpiece, beige

Motorola PMLN6127

PMLN6127

IMPRES 2-Wire Surveillance Kit, programmable button, black

Motorola PMLN6128

PMLN6128

IMPRES 2-Wire Surveillance Kit, programmable button, beige

Motorola NNTN8459

NNTN8459

1-Wire Surveillance Kit with translucent tube, in-line microphone and PTT, black

Motorola PMLN6129

PMLN6129

IMPRES 2-Wire Surveillance Kit with translucent tube, programmable button, black

Motorola PMLN6130

PMLN6130

IMPRES 2-Wire Surveillance Kit with translucent tube, programmable button, beige

Motorola PMLN6123

PMLN6123

IMPRES 3-Wire Surveillance Kit with translucent tube, programmable button, black

Motorola PMLN6124

PMLN6124

IMPRES 3-Wire Surveillance Kit with translucent tube, programmable button, beige

Motorola PMLN5096

PMLN5096

D-Style Earset with boom microphone and in-line push-to-talk

Motorola PMLN6852

PMLN6852

Heavy-Duty Behind-the-Head Headset with Noise-Canceling boom microphone, noise reduction = 24dB

Motorola PMLN5275

PMLN5275

Heavy-Duty Behind-the-Head Headset with Noise-Canceling boom microphone, noise reduction = 24dB, FM, TIA

Motorola PMLN5101

PMLN5101

IMPRES Temple Transducer with boom microphone and in-line push-to-talk

Motorola RMN5058

RMN5058

Lightweight Over-the-Head Headset single muff with in-line push-to-talk and boom mic

Motorola PMLN5102

PMLN5102

Ultra-Lite Behind-the-Head Headset, single muff with in-line push-to-talk and boom mic

Motorola PMLN6827

PMLN6827

Tactical PTT Interface Module

Motorola PMLN6833

PMLN6833

Tactical Temple Transducer with noise cancelling boom microphone

(Requires interface module PMLN6827)

Motorola PMLN6767

PMLN6767

Tactical Remote Body PTT

(For use with interface module PMLN6827)

Motorola PMLN6830

PMLN6830

Tactical Remote Ring PTT (For use with interface module PMLN6827)

3M Peltor Heavy-Duty Headsets

Direct Connect

Motorola RMN5137

RMN5137

MT Series Over-The-Head Headset, direct radio connect

PELTOR PART NUMBER: MT7H79A-C5063-34

Motorola RMN5138

RMN5138

MT Series Neckband Headset, direct radio connect

PELTOR PART NUMBER: MT7H79B-C5063-34

Motorola RMN5139

RMN5139

MT Series Hard Hat Attached Headset, direct radio connect

PELTOR PART NUMBER: MT7H79P3E-C5063-34

PTT Adapter Configurations

Motorola PMLN6088

PMLN6088

MT Series Over-the-Head Headset with Nexus connector

Requires PTT Adapter PMLN6095

PELTOR PART NUMBER: MT7H79A-34

Motorola RLN6477

RLN6477

MT Series Neckband Headset with Nexus connector

Requires PTT Adapter PMLN6095

PELTOR PART NUMBER: MT7H79B-34

Motorola RMN4051

RMN4051

MT Series Hard Hat Attached with Nexus connector

Requires PTT Adapter PMLN6095

PELTOR PART NUMBER: MT7H79P3E-34

Motorola RMN4052

RMN4052

TacticalPro Series Over-The-Head Headset with Nexus connector

Requires PTT Adapter PMLN6095

PELTOR PART NUMBER: MT15H7A-34

Motorola RMN5135

RMN5135

TacticalPro Series Neckband Headset with Nexus connector

Requires PTT Adapter PMLN6095

PELTOR PART NUMBER: MT15H7B-07-34

Motorola RMN4053

RMN4053

TacticalPro Series Hard Hat Attached with Nexus connector

Requires PTT Adapter PMLN6095

PELTOR PART NUMBER: MT15H7P3E-34

Motorola PMLN6095

PMLN6095

PTT Nexus Adapter

PELTOR PART NUMBER:FL5063-34

RSM Configurations

Motorola RMN4055

RMN4055

HT Series Listen Only Over-The-Head Headset with 3.5mm NON threaded connector

MOTOTRBO radios require RSM: PMMN4024, PMMN4025, PMMN4041, PMMN4042, PMMN4043, PMMN4050, PMMN4071, PMMN4073 or PMMN4076

PELTOR PART NUMBER: HTM79A-34

Motorola RMN5132

RMN5132

HT Series Listen Only Neckband Headset with 3.5mm NON threaded connector

MOTOTRBO radios require RSM: PMMN4024, PMMN4025, PMMN4041, PMMN4042, PMMN4043, PMMN4050, PMMN4071, PMMN4073 or PMMN4076

PELTOR PART NUMBER: HTM79B-34

Motorola RMN5133

RMN5133

HT Series Listen Only Hard Hat Attached Headset with 3.5mm NON threaded connector

MOTOTRBO radios require RSM: PMMN4024, PMMN4025, PMMN4041, PMMN4042, PMMN4043, PMMN4050, PMMN4071, PMMN4073 or PMMN4076

PELTOR PART NUMBER: HTM79P3E-34

Motorola RMN4056

RMN4056

HT Series Listen Only Over-The-Head Headset with 3.5 threaded connector

MOTOTRBO radios require RSM: NNTN8383

PELTOR PART NUMBER: HTM79A-42

Motorola RMN4057

RMN4057

HT Series Listen Only Hard Hat Attached Headset with 3.5 threaded connector

MOTOTRBO radios require RSM: NNTN8383

PELTOR PART NUMBER: HTM79P3E-42

Motorola PMMN4024

PMMN4024

Windporting Remote Speaker Microphone with 3.5mm audio jack, small (IP54)

Motorola PMMN4025

PMMN4025

IMPRES Windporting Remote Speaker Microphone with 3.5mm audio jack and emergency button, small (IP54)

Motorola PMMN4040

PMMN4040

Windporting Remote Speaker Microphone, small, submersible (IP57)

Motorola PMMN4046

PMMN4046

IMPRES Windporting Remote Speaker Microphone with volume control, emergency button and programmable button, large, submersible (IP57)

Motorola PMMN4050

PMMN4050

IMPRES Noise-Canceling Remote Speaker Microphone with 3.5mm audio jack, large (IP54), Noise Canceling (IP54)

NOT INTENDED FOR FIRE MARKETS

Motorola NNTN8382

NNTN8382

IMPRES Industrial Noise Canceling (INC) Dual Mic. Noise Suppression Remote Speaker Microphone, submersible (IP57)

Motorola NNTN8383

NNTN8383

IMPRES Industrial Noise Canceling (INC) Dual Mic. Noise Suppression Remote Speaker Microphone with 3.5 mm threaded audio jack (IP54)

Remote Speaker Microphone With Standard 3.5mm Jack

Motorola AARLN4885

AARLN4885

Receive-Only Covered Earbud with coiled cord

Motorola RLN4941

RLN4941

Receive-Only Earpiece with translucent tube and rubber eartip

Motorola WADN4190

WADN4190

Receive-Only Flexible Earpiece

Motorola PMLN4620

PMLN4620

Receive-Only D-Shell Earpiece

Remote Speaker Microphone With Threaded 3.5mm Jack

Motorola BDN6719

BDN6719

One-wire Flexible Ear Receiver, black.

Compatible with NNTN8383 only.

Image Not Available

BDN6781

One-wire Earbud, black.

Compatible with NNTN8383 only.

Motorola BDN6664

BDN6664

One-wire Earpiece, beige.

Compatible with NNTN8383 only.

Image Not Available

BDN6665

Extra Loud One-wire Earpiece, beige.

Compatible with NNTN8383 only.

/products-small/motorola-bdn6726.png" alt="Motorola BDN6726" />

BDN6726

One-wire Earpiece, black.

Compatible with NNTN8383 only.

Motorola BDN6727

BDN6727

Extra Loud One-wire Earpiece, black.

Compatible with NNTN8383 only.

Image Not Available

BDN6666

One-wire Earpiece with Volume Control,beige.

Compatible with NNTN8383 only.

Image Not Available

BDN6728

One-wire Earpiece with Volume Control, black.

Compatible with NNTN8383 only.

Image Not Available

RLN5314

One-wire Earpiece with Clear Acoustic Tube, beige.

Compatible with NNTN8383 only.

Motorola RLN5313

RLN5313

One-wire Earpiece with Clear Acoustic Tube, black.

Compatible with NNTN8383 only.

Motorola RMN4056

RMN4056

Dual Muff Headband Style Headset.

Compatible with NNTN8383 only.

Motorola RMN4057

RMN4057

Dual Muff Hardhat Mount Headset.

Compatible with NNTN8383 only.

The Motorola XPR 7000e Series is available in the following models.

Motorola XPR 7550e

Wi-Fi Capable Models

  • AAH56JDN9WA1AN 136-174 MHz 5 Watts, 1000 Channels Color display, Full keypad,
  • AAH56RDN9WA1AN 403-512 MHz 4 Watts, 1000 Channels Color display, Full keypad,

Wi-Fi Enabled Models

  • AAH56JDN9RA1AN 136-174 MHz 5 Watts, 1000 Channels Color display, Full keypad,
  • AAH56RDN9RA1AN 403-512 MHz 4 Watts, 1000 Channels Color display, Full keypad,

Motorola XPR 7580e

Wi-Fi Capable Models

  • AAH56UCN9WB1AN 806 - 941 MHz, 2.5 Watts, 1000 Channels Color display, Full keypad

Wi-Fi Enabled Models

  • AAH56UCN9RB1AN 806 - 941 MHz, 2.5 Watts, 1000 Channels Color display, Full keypad

Motorola XPR 7350e

  • AAH56JDC9KA1AN 136-174 MHz 5 Watts, 32 Channels No display, No keypad
  • AAH56RDC9KA1AN 403-512 MHz 4 Watts, 32 Channels No display, No keypad

Motorola XPR 7380e

  • AAH56UCC9KB1AN 806 - 941 MHz, 2.5 Watts, 32 Channels No display, No keypad
