 | PMAE4079 UHF/GPS Combination Wideband Slim Whip Antenna (403-527 MHz) |
 | PMAD4117 VHF/GPS Combination Helical Antenna (136-155 MHz) |
 | PMAD4116 VHF/GPS Combination Helical Antenna (144-165 MHz) |
 | PMAD4118 VHF/GPS Combination Helical Antenna (152-174 MHz) |
 | PMAE4069 UHF/GPS Combination Stubby Antenna (403-450 MHz) |
 | PMAE4070 UHF/GPS Combination Stubby Antenna (440-490 MHz) |
 | PMAE4071 UHF/GPS Combination Stubby Antenna (470-527 MHz) |
 | PMAD4119 VHF/GPS Combination Stubby Antenna (136-148 MHz) |
 | PMAD4120 VHF/GPS Combination Stubby Antenna (146-160 MHz) |
 | PMAD4121 VHF Stubby Antenna (160-174 MHz) |
| PMAD4137 VHF Stubby Antenna (300-337 MHz) |
| PMAD4135 VHF Stubby Antenna (320-360 MHz) |
| PMAD4136 VHF Stubby Antenna (350-380 MHz) |
| PMAD4133 VHF Stubby Antenna (360-400 MHz) |
| PMAD4138 VHF Whip Antenna (300-360 MHz) |
| PMAD4139 VHF Whip Antenna (350-400 MHz) |
| PMAF4011 800 MHz Flexible Whip Antenna (806-870 MHz) |
| PMAF4012 900 MHz Flexible Whip Antenna (896-941 MHz) |
| PMAF4009 800/900 Stubby Antenna (806-870 MHz) |
| PMAF4010 800/900 Stubby Antenna (896-941 MHz) |

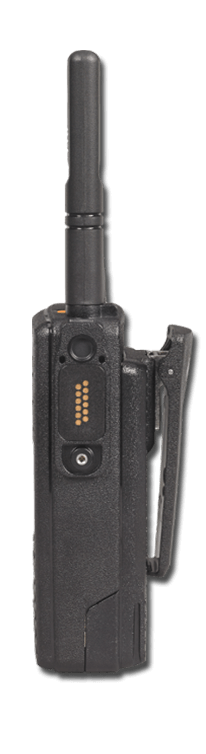

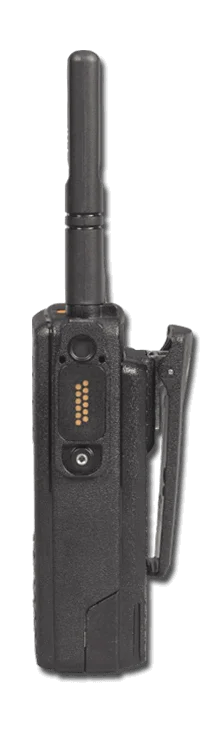

Motorola XPR 7380e
Motorola
XPR 7380e
With this dynamic evolution of MOTOTRBO digital two-way radios, you’re better connected, safer and more productive. The XPR 7380e MOTOTRBO portable radio is the non-display, non-keypad version of the top of the line 7000e series in 800/900 MHz. With high-performance integrated voice and data, and advanced features for efficient operation, these next-generation radios deliver complete connectivity to your organization.
Special Pricing and Promotions are available on the XPR 7380e this quarter. View All Promotions
Here's what's new in these next-generation radios:
- Integrated Wi-Fi
- Over-the-air software updates
- Bluetooth® 4.0
- Indoor location tracking
- Integrated accelerometer for optional Man Down
- Enhanced audio quality
- Improved expandability
- Better battery life (up to 29 hours)
- Better range (up to 8%)
- Better waterproofing (IP68)
Each XPR7380e standard radio package includes:
- For ENABLED Models, IMPRES LIION IP68 3000T (PMNN4493A, includes Belt Clip PMLN7008A)
- For CAPABLE Models, IMPRES LIION IP68 2100T (PMNN4491A, includes Belt Clip PMLN7008A)
- IMPRES™ Single-Unit Charger CEC Compliant (PMPN4174A)
- 800/900 MHz Antenna (must select appropriate option)
- Accessory Dust Cover
- 5 Year Essential Repair and Software Warranty
What are the Differences between the MOTOTRBO XPR 7000e Series Enabled, Capable, and the Legacy XPR 7380? Read our blog article.
Performance
Frequency band:
800 MHz, 900 MHz
Frequency range:
800 MHz: 806-825 MHz, 851-870 MHz
900 MHz: 896-902 MHz, 935-941 MHz
Power Output:
1 - 5 W
Standard battery chemistry type:
Lithium Ion
Battery life (based on a 5-5-90 duty cycle):
Digital/Analog Battery Life, High-Capacity 2250 mAh Battery:
XPR 7380e 800/900: 22.0/16.5 hours
Digital /Analog Battery Life, Low Voltage 3000 mAh Battery:
XPR 7380e 800/900: 28.0/23.0 hours
Channel spacing:
12.5, 25
Physical
Dimensions H x W x D (with standard battery)
5.1 x 2.2 x 1.3 in (130 x 55 x 34 mm)
Weight (with standard battery)
10 oz (290 g)
Keypad / Keys
No Keypad
Display
User Enviroment
Operating temperature
-22 °F to 140 °F (-30 °C to +60 °C)
Mil spec
810 C, 810 D, 810 E, 810 F, 810 G
IP Standards
IP68
- Best-in-class Audio:
Loud front-facing speaker and Intelligent Audio feature automatically adjusts the radio volume according to the environment's noise level. - Embedded Bluetooth Audio and Data:
Embedded into the radio and enables connectivity with wireless accessories, including Motorola's unique Operations-Critical Wireless earpieces designed for rugged and reliable communications. Share real-time information easily by connecting radios to Bluetooth-enabled data devices. - Certified Intrinsically Safe (UL):
Certified as intrinsically safe by UL approvals when purchased and equipped with an UL battery for use in hazardous environments. - Basic or Enhanced Privacy:
Built-in scrambling for increased security. - Transmit Interrupt:
Enables a user to interrupt another radio conversation to deliver critical communication exactly when and where it's needed. - Integrated GPS:
Locate mobile work teams using integrated GPS. - Productivity-enhancing Data Applications:
Features the industry's largest application developer program to enable a wide variety of customized applications including: location tracking, Bluetooth data, email gateways, dispatch, telephony, man-down and work order ticket management. - Rugged Design:
Tightly sealed against wind and dust, and submersible in up to one meter of water for 30 minutes (IP68). - Emergency Button:
Orange button on the top of the radio can be programmed to send an alert to a supervisor or dispatcher during an emergency situation.
Brochures
- Motorola XPR 7000 Series Accessories Catalog
- MOTOTRBO Systems At a Glance
- MOTOTRBO At a Glance
- MOTOTRBO Two-Way Radio Solutions At A Glance
Data Sheets
Motorola Original® Two-Way Radio Batteries
 | PMNN4407 IMPRES Slim Li-Ion 1500 mAh battery Submersible (IP57) |
 | PMNN4409 IMPRES Li-Ion 2150 mAh battery Submersible (IP57) |
 | PMNN4435 Long life (LiMn) 1300 mAh battery Submersible (IP57), -30ºC rated |
 | PMNN4448 IMPRES Hi-Cap Li-Ion 2700 mAh battery Submersible (IP57) |
 | NNTN8129 IMPRES Li-Ion 2300 mAh battery Submersible (IP57), Intrinsically safe (FM) |
| NNTN8560 IMPRES Hi-Cap Li-Ion 2500 mAh battery Submersible (IP57), Intrinsically safe (TIA4950) |
Operations-Critical and Enhanced Operations-Critical Wireless Accessories and Earpieces
 | NNTN8294 Operations-Critical Wireless Earbud with 11.5-inch cable |
 | NNTN8295 Operations-Critical Wireless Earbud with 45-inch cable |
 | PMLN7052 Operations-Critical Wireless 1-Wire Surveillance kit with quick disconnect translucent tube |
 | NNTN8296 Wireless Covert Kit (includes 2 sets of two-wire earbud (1 black and 1 white), a single-wire black earbud and a 3.5mm adapter to plug in any consumer off-the-shelf headphones) |
| RLN6550 Swivel Earpiece with in-line microphone Multi-Pack (3 pack) for MOTOTRBO Bluetooth Accessory Kit |
| PMLN7203 Flexible Fit Swivel Earpiece with Boom Microphone Multi-Pack (3 pack) for MOTOTRBO Bluetooth Accessory Kit |
Operations-Critical Wireless Completely Discreet Kit
 | RLN4922 Completely Discreet Earpiece Kit (includes Phonak phonito intra earpiece and inductive neck loop) |
 | NNTN8385 Wireless neck loop Y-adapter and retention hook |
 | NNTN8127 Wireless Push-to-Talk Pod |
Bluetooth Accessories
Operations-Critical Wireless Bluetooth® Accessories
 | RLN6490 XBT Operations-Critical Wireless Behind-the-Neck Headset |
 | RLN6491 XBT Operations-Critical Wireless Headband Style Headset |
 | NNTN8125 Operations-Critical Wireless Earpiece with 12-inch cable |
| NNTN8127 Operations-Critical Wireless push-to-talk pod |
 | RLN6500 Bluetooth Accessory Kit with swivel earpiece and battery clip (PTT on radio or with separate wireless PTT) |
 | PMLN7181 Bluetooth Accessory Kit with Flexible Fit swivel earpiece with Boom Microphone and charging cradle (PTT on radio or with separate wireless PTT) |
 | PMLN5844 Nylon Case with 3-inch Fixed Belt Loop (full keypad model) |
 | PMLN5842 Hard Leather Case with 2.5-inch Swivel Belt Loop (full keypad model) |
 | PMLN5840 Hard Leather Case with 3-inch Swivel Belt Loop (full keypad model) |
 | PMLN5838 Hard Leather Case with 3-inch Fixed Belt Loop (full keypad model) |
 | PMLN5845 Nylon Case with 3-inch Fixed Belt Loop (non-display model) |
 | PMLN5843 Hard Leather Case with 2.5-inch Swivel Belt Loop (non-display model) |
| PMLN5846 Hard Leather Case with 3-inch Swivel Belt Loop (non-display model) |
 | PMLN5839 Hard Leather Case with 3-inch Fixed Belt Loop (non-display model) |
 | HLN9985 Waterproof Bag with large strap for securely carrying Motorola two-way radios |
 | 4200865599 1.75-inch Wide Leather Belt |
 | HLN6602 Universal Chest Pack with Radio Holder, Pen Holder and Velcro-Secured Pouch |
 | RLN4570 Break-a-Way Chest Pack with Radio Holder Pen Holder and Velcro-Secured Pouch |
| 1505596Z02 Replacement Strap for HLN6602 and RLN4570 |
 | RLN4815 Radio Pack Radio Utility Case |
 | 4280384F89 Radio Pack Extension Belt for waists larger than 40 inches |
 | NTN5243 Adjustable Nylon Carrying Strap |
 | RLN6486 Leather Radio Strap |
 | RLN6487 Leather Radio Strap - XL |
 | RLN6488 Anti-Sway Strap for Leather Radio Straps |
| 15012157001 Accessory Connector Dust Cover |
Desktop, Single & Multi-unit Chargers
 | WPLN4232 IMPRES Single-Unit Rapid Rate Charger, 120V (US Plug) |
 | WPLN4212 IMPRES Multi-Unit Rapid Rate Charger with 1 Display, 120V (US plug) |
 | WPLN4219 IMPRES Multi-Unit Rapid Rate Charger with 6 Displays, 120V (US plug) |
 | RLN5382 Display Module for IMPRES Multi-Unit Charger |
 | NLN7967 Wall Mount Bracket for IMPRES Multi-Unit Charger |
Vehicular and Travel Chargers
 | NNTN7616 IMPRES Single-Unit Rapid Rate Vehicular Charger, heavy-duty permanent mount |
 | NNTN8525 Travel Charger, Rapid Rate with voltage-regulated adapter, custom charger base, mounting bracket and coil cord |
 | PMLN6125 1-Wire Receive-only earpiece, black |
 | PMLN6126 1-Wire Receive-only earpiece, beige |
 | PMLN6127 IMPRES 2-Wire Surveillance Kit, programmable button, black |
 | PMLN6128 IMPRES 2-Wire Surveillance Kit, programmable button, beige |
 | NNTN8459 1-Wire Surveillance Kit with translucent tube, in-line microphone and PTT, black |
 | PMLN6129 IMPRES 2-Wire Surveillance Kit with translucent tube, programmable button, black |
 | PMLN6130 IMPRES 2-Wire Surveillance Kit with translucent tube, programmable button, beige |
 | PMLN6123 IMPRES 3-Wire Surveillance Kit with translucent tube, programmable button, black |
 | PMLN6124 IMPRES 3-Wire Surveillance Kit with translucent tube, programmable button, beige |
 | PMLN5096 D-Style Earset with boom microphone and in-line push-to-talk |
 | PMLN6852 Heavy-Duty Behind-the-Head Headset with Noise-Canceling boom microphone, noise reduction = 24dB |
 | PMLN5275 Heavy-Duty Behind-the-Head Headset with Noise-Canceling boom microphone, noise reduction = 24dB, FM, TIA |
 | PMLN5101 IMPRES Temple Transducer with boom microphone and in-line push-to-talk |
 | RMN5058 Lightweight Over-the-Head Headset single muff with in-line push-to-talk and boom mic |
 | PMLN5102 Ultra-Lite Behind-the-Head Headset, single muff with in-line push-to-talk and boom mic |
 | PMLN6827 Tactical PTT Interface Module |
 | PMLN6833 Tactical Temple Transducer with noise cancelling boom microphone (Requires interface module PMLN6827) |
 | PMLN6767 Tactical Remote Body PTT (For use with interface module PMLN6827) |
 | PMLN6830 Tactical Remote Ring PTT (For use with interface module PMLN6827) |
3M Peltor Heavy-Duty Headsets
Direct Connect
 | RMN5137 MT Series Over-The-Head Headset, direct radio connect PELTOR PART NUMBER: MT7H79A-C5063-34 |
 | RMN5138 MT Series Neckband Headset, direct radio connect PELTOR PART NUMBER: MT7H79B-C5063-34 |
 | RMN5139 MT Series Hard Hat Attached Headset, direct radio connect PELTOR PART NUMBER: MT7H79P3E-C5063-34 |
PTT Adapter Configurations
 | PMLN6088 MT Series Over-the-Head Headset with Nexus connector Requires PTT Adapter PMLN6095 PELTOR PART NUMBER: MT7H79A-34 |
 | RLN6477 MT Series Neckband Headset with Nexus connector Requires PTT Adapter PMLN6095 PELTOR PART NUMBER: MT7H79B-34 |
 | RMN4051 MT Series Hard Hat Attached with Nexus connector Requires PTT Adapter PMLN6095 PELTOR PART NUMBER: MT7H79P3E-34 |
 | RMN4052 TacticalPro Series Over-The-Head Headset with Nexus connector Requires PTT Adapter PMLN6095 PELTOR PART NUMBER: MT15H7A-34 |
 | RMN5135 TacticalPro Series Neckband Headset with Nexus connector Requires PTT Adapter PMLN6095 PELTOR PART NUMBER: MT15H7B-07-34 |
 | RMN4053 TacticalPro Series Hard Hat Attached with Nexus connector Requires PTT Adapter PMLN6095 PELTOR PART NUMBER: MT15H7P3E-34 |
 | PMLN6095 PTT Nexus Adapter PELTOR PART NUMBER:FL5063-34 |
RSM Configurations
 | RMN4055 HT Series Listen Only Over-The-Head Headset with 3.5mm NON threaded connector MOTOTRBO radios require RSM: PMMN4024, PMMN4025, PMMN4041, PMMN4042, PMMN4043, PMMN4050, PMMN4071, PMMN4073 or PMMN4076 PELTOR PART NUMBER: HTM79A-34 |
 | RMN5132 HT Series Listen Only Neckband Headset with 3.5mm NON threaded connector MOTOTRBO radios require RSM: PMMN4024, PMMN4025, PMMN4041, PMMN4042, PMMN4043, PMMN4050, PMMN4071, PMMN4073 or PMMN4076 PELTOR PART NUMBER: HTM79B-34 |
 | RMN5133 HT Series Listen Only Hard Hat Attached Headset with 3.5mm NON threaded connector MOTOTRBO radios require RSM: PMMN4024, PMMN4025, PMMN4041, PMMN4042, PMMN4043, PMMN4050, PMMN4071, PMMN4073 or PMMN4076 PELTOR PART NUMBER: HTM79P3E-34 |
 | RMN4056 HT Series Listen Only Over-The-Head Headset with 3.5 threaded connector MOTOTRBO radios require RSM: NNTN8383 PELTOR PART NUMBER: HTM79A-42 |
| RMN4057 HT Series Listen Only Hard Hat Attached Headset with 3.5 threaded connector MOTOTRBO radios require RSM: NNTN8383 PELTOR PART NUMBER: HTM79P3E-42 |
 | PMMN4024 Windporting Remote Speaker Microphone with 3.5mm audio jack, small (IP54) |
 | PMMN4025 IMPRES Windporting Remote Speaker Microphone with 3.5mm audio jack and emergency button, small (IP54) |
 | PMMN4040 Windporting Remote Speaker Microphone, small, submersible (IP57) |
 | PMMN4046 IMPRES Windporting Remote Speaker Microphone with volume control, emergency button and programmable button, large, submersible (IP57) |
 | PMMN4050 IMPRES Noise-Canceling Remote Speaker Microphone with 3.5mm audio jack, large (IP54), Noise Canceling (IP54) NOT INTENDED FOR FIRE MARKETS |
 | NNTN8382 IMPRES Industrial Noise Canceling (INC) Dual Mic. Noise Suppression Remote Speaker Microphone, submersible (IP57) |
| NNTN8383 IMPRES Industrial Noise Canceling (INC) Dual Mic. Noise Suppression Remote Speaker Microphone with 3.5 mm threaded audio jack (IP54) |
Remote Speaker Microphone With Standard 3.5mm Jack
 | AARLN4885 Receive-Only Covered Earbud with coiled cord |
 | RLN4941 Receive-Only Earpiece with translucent tube and rubber eartip |
 | WADN4190 Receive-Only Flexible Earpiece |
 | PMLN4620 Receive-Only D-Shell Earpiece |
Remote Speaker Microphone With Threaded 3.5mm Jack
 | BDN6719 One-wire Flexible Ear Receiver, black. Compatible with NNTN8383 only. |
| BDN6781 One-wire Earbud, black. Compatible with NNTN8383 only. |
 | BDN6664 One-wire Earpiece, beige. Compatible with NNTN8383 only. |
| BDN6665 Extra Loud One-wire Earpiece, beige. Compatible with NNTN8383 only. |
| BDN6726 One-wire Earpiece, black. Compatible with NNTN8383 only. |
 | BDN6727 Extra Loud One-wire Earpiece, black. Compatible with NNTN8383 only. |
| BDN6666 One-wire Earpiece with Volume Control,beige. Compatible with NNTN8383 only. |
| BDN6728 One-wire Earpiece with Volume Control, black. Compatible with NNTN8383 only. |
| RLN5314 One-wire Earpiece with Clear Acoustic Tube, beige. Compatible with NNTN8383 only. |
 | RLN5313 One-wire Earpiece with Clear Acoustic Tube, black. Compatible with NNTN8383 only. |
| RMN4056 Dual Muff Headband Style Headset. Compatible with NNTN8383 only. |
 | RMN4057 Dual Muff Hardhat Mount Headset. Compatible with NNTN8383 only. |
- AAH56UCC9WB1AN, XPR 7380e 800/900 - CAPABLE
- AAH56UCC9RB1AN, XPR 7380e 800/900 - ENABLED
© Day Wireless Systems.
Motorola Two Way Radio Dealer Oregon, Washington, California, Idaho, Wyoming.
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC
and are used under license. All other trademarks are the property of their respective owners. © Motorola Solutions, Inc. All rights reserved.
