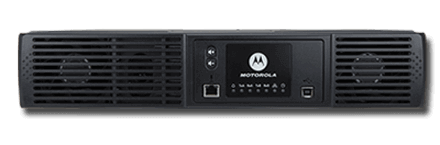

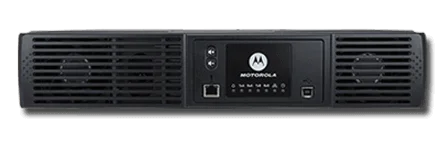

Motorola SLR 8000 Repeater (MOTOTRBO SLR8000)

  • Motorola Solutions SLR 8000

SLR 8000 Repeater

SLR 8000 Repeater

The Motorola SLR 8000 is a high-power, enterprise-grade MOTOTRBO repeater engineered for organizations that demand maximum coverage and uncompromising reliability. Delivering 100 watts of continuous transmit power across VHF, UHF, 800 MHz, and 900 MHz frequency bands, the SLR8000 is the most versatile repeater in the MOTOTRBO lineup.

With its compact 2U modular design, the Motorola SLR 8000 offers very low power consumption relative to its output class — keeping your total cost of ownership low without sacrificing performance. Like all MOTOTRBO repeaters, the SLR8000 has been validated through Motorola's Accelerated Life Testing (ALT) program and is built to run 24 hours a day, 7 days a week at full transmit power.

The SLR 8000 supports the full MOTOTRBO feature set and is fully compatible with all system architectures — including Capacity Plus, Capacity Max, and Connect Plus — giving you the scalability to grow your network as your organization's communication needs evolve.

SLR 8000 Key Features

  • 100W continuous transmit power — full-duty-cycle 24/7 operation
  • VHF (136–174 MHz), UHF (400–512 MHz), 800 MHz, and 900 MHz frequency support
  • Compact 2U modular design — efficient use of rack space
  • Internal preselector amplifier and antenna relay module options — true one-box installation
  • Optional internal wireline card for tone control, four-wire audio, and additional external inputs
  • Next-generation receiver with high sensitivity and improved noise blocking
  • Full MOTOTRBO architecture support: Conventional, IP Site Connect, Capacity Plus, Capacity Max, Connect Plus
  • IP interface for building applications and dispatch consoles directly into your system
  • Validated through Motorola Accelerated Life Testing (ALT)

Why Choose the Motorola SLR 8000?

The SLR 8000 is Motorola's flagship MOTOTRBO repeater for high-power and wide-area deployments. Its support for 800 and 900 MHz bands makes it the only MOTOTRBO repeater suited for enterprise networks operating in those spectrum ranges. The optional preselector amplifier and antenna relay module allow a true single-enclosure installation, simplifying tower and rack deployments considerably.

As an authorized Motorola Solutions dealer and Service Elite Specialist, Day Wireless designs, supplies, and commissions SLR 8000 systems across Oregon, Washington, California, Idaho, Utah, and Wyoming. Our RF engineers work with you from system design through installation and ongoing maintenance, ensuring your SLR8000 investment performs as designed.

Popular SLR 8000 Use Cases

  • Wide-area and multi-site MOTOTRBO networks requiring high transmit power
  • 800 MHz and 900 MHz enterprise radio systems
  • Large campus, utility, and industrial deployments
  • Capacity Max and Connect Plus trunked system infrastructure
  • Mission-critical environments where 24/7 reliability is non-negotiable

Frequently Asked Questions — Motorola SLR 8000

What is the difference between the SLR 8000 and SLR 5700?

The SLR 8000 delivers twice the transmit power (100W vs. 50W), supports 800/900 MHz bands in addition to VHF and UHF, and occupies 2U of rack space vs. 1U for the SLR 5700. It is the preferred choice for wide-area, high-power, or 800/900 MHz deployments.

Does the SLR 8000 support Capacity Max?

Yes. The SLR8000 supports the full MOTOTRBO architecture suite including Capacity Max, Capacity Plus, Connect Plus, IP Site Connect, and conventional analog and digital modes.

What optional modules are available for the SLR 8000?

The SLR 8000 supports an internal preselector amplifier, an antenna relay module for single-box installation, and an internal wireline card providing tone control, four-wire audio, and additional external I/O connections.

Does the SLR 8000 require an FCC license?

Yes. All MOTOTRBO repeater operations require an FCC license. Day Wireless can assist with FCC licensing as part of your SLR 8000 system purchase.

Can I get a quote for the Motorola SLR 8000?

Contact Day Wireless for current SLR 8000 pricing and availability. Our team serves customers across 30 locations in Oregon, Washington, California, Idaho, Utah, Wyoming, and internationally. Get in touch here.


Request a Quote

Performance

Frequency Band:
VHF, UHF, 800/900 MHz

Frequency Range:
VHF: 136 - 174 MHz
UHF: 400 - 470 MHz
800: RX: 806 - 825 MHz, TX: 851 - 870 MHz
900: RX: 896 - 902 MHz, TX: 935 - 941 MHz

Power Output:
1 - 100 W

Channel spacing:
12.5 / 20 kHz / 25 kHz / 30 kHz

Physical

Dimensions H x W x D
3.5 x 19 x 17.25 in (89 x 483 x 438 mm)

Weight
31 lbs (14.1 kg)

User Enviroment

Operating temperature
-22 to +140 °F (-30 to +60 °C)

Next-generation MOTOTRBO Repeater
The SLR 8000 represents a huge leap forward in design and technology. Based on a wealth of field experience, customer feedback and technological innovation, the product delivers outstanding performance and reliability for your business two-way radio system. From an efficient modular design to flexible installation options, the SLR 8000 is truly the next generation in repeaters.

High Reliability
The SLR 8000 offers round-the-clock reliable operation, even at its continuous full transmit power of 100W. The high-quality design has been validated through Motorola's Accelerated Life Testing (ALT) program, and meets stringent quality criteria. The product has a next-generation receiver design, with high sensitivity and improved noise blocking, so you can be confident of clear voice quality, even in the worst conditions.

High Performance
With its 100W transmitter output and high sensitivity receiver input, the SLR 8000 delivers radio coverage to an enormous area. The efficient modular design only requires 2U of rack space, and has very low power consumption, yielding very low cost of ownership. The SLR 8000 supports the full MOTOTRBO feature set and is compatible with all the MOTOTRBO system architectures. The IP interface allows you to build applications and consoles directly on your system.

Total Flexibility
The SLR 8000 can be customized to suit your operation. There are options for an internal preselector amplifier and antenna relay module, offering you a true one-box installation. You can also opt for an internal wireline card if you need tone control capabilities, four-wire audio and additional external inputs.
